51 16 ... Removing and Installing / Replacing Bracket for Interior Rearview Mirror

51 16 ... - Removing and installing/replacing bracket for interior rearview mirror





Necessary preliminary tasks:
- Remove interior rearview mirror Removing and Installing/Replacing Interior Rearview Mirror
- Remove roof operating unit Service and Repair

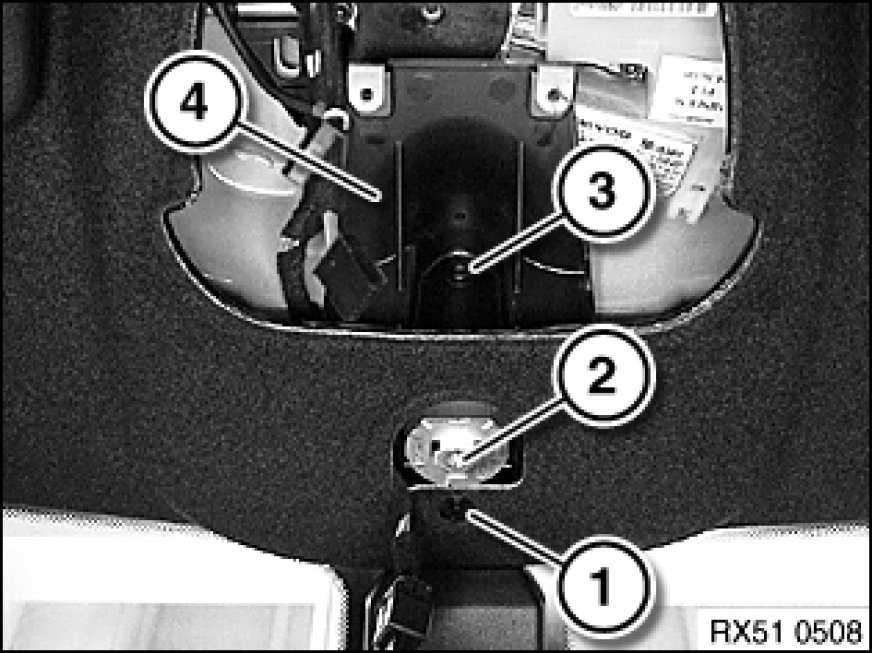

Release clip (1).
Unfasten screws (2 and 3).
If necessary, release cable holder and feed out bracket (4).
