Removing and Installing/Replacing Bumper Antenna for Comfort Access System

61 35 975 - Removing and installing/replacing bumper antenna for Comfort Access System





Note:
Bumper trim shown removed for purposes of clarity.

Disconnect associated plug connection.

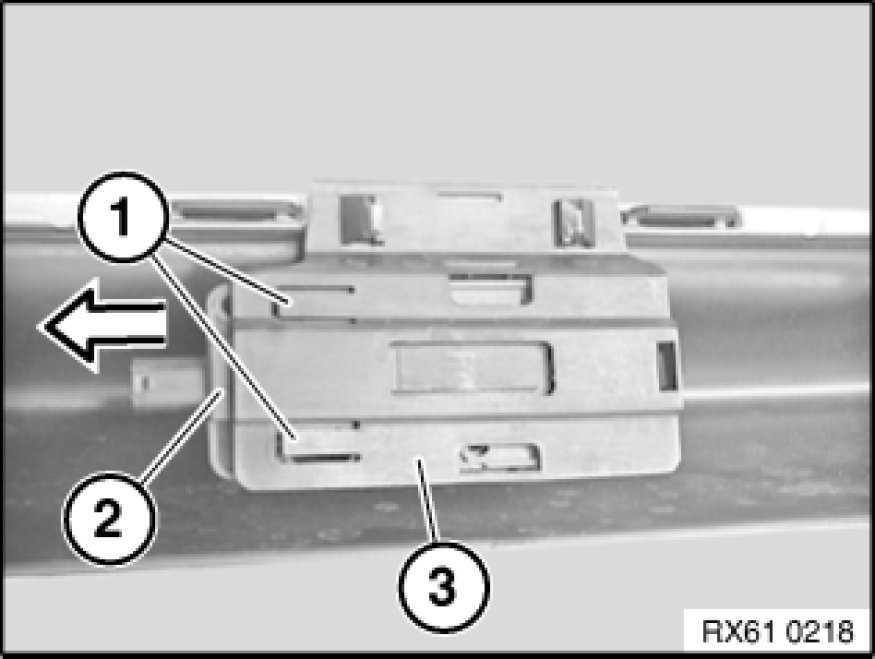

Unlock catches (1).
Guide bumper antenna for comfort access system (2) in direction of arrow out of holder (3).
