Removing and Installing/Replacing Trim Panel on Clubdoor Pillar

51 43 160 - Removing and installing/replacing trim panel on clubdoor pillar

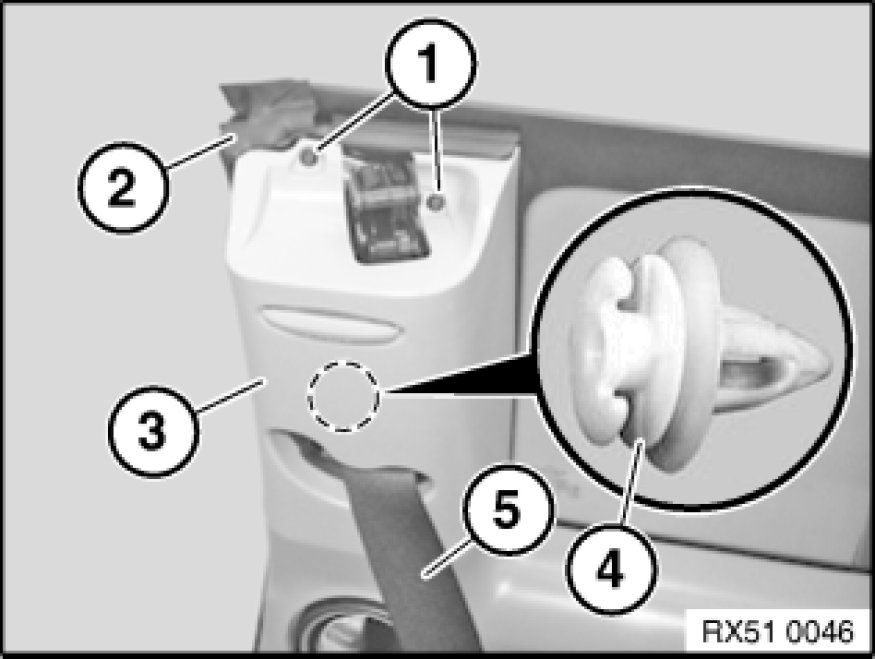

Release screw (1).
Tightening torque 51 43 5AZ [1][2]Specifications.
Detach door seal (2) in working area.
Detach panel (3) from clip (4) towards inside.
Only if replacing, release belt strap (5) (see last work step).

Installation:
Make sure belt strap (5) can move freely.
If necessary, replace faulty clip (4).
Make sure door seal (2) is correctly seated.





Version with light package:

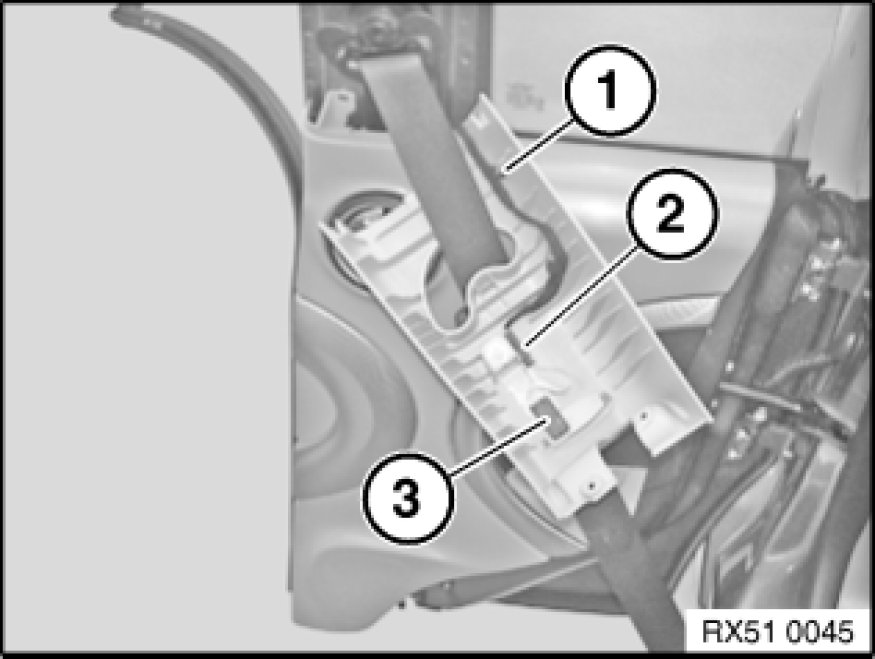

Release cable holder (1) and disconnect plug connection (2).

Installation:
Make sure LED (3) is correctly seated.





Replacement:

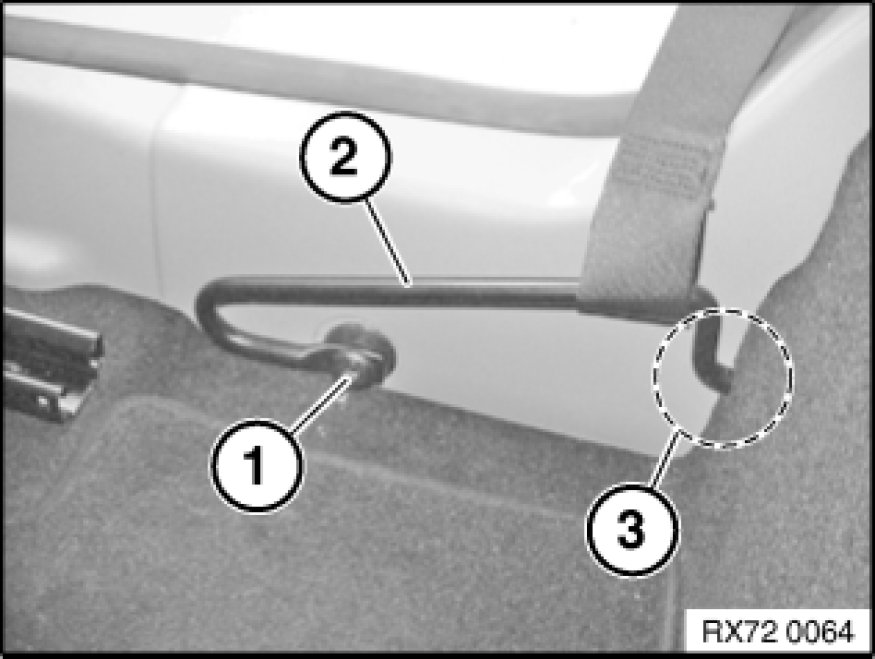

Release screw (1).
Tightening torque 72 11 4AZ [1][2]72 11 Seat Belts.
Feed out guide bar (2).
Make sure guide bar is correctly seated in area (3).
Feed out belt strap from trim for door pillar.
