51 47 000 Removing and Installing/Replacing Front Left or Right Entrance Cover Strip

51 47 000 - Removing and installing/replacing front left or right entrance cover strip





Important!
Seat shown removed for purposes of clarity.
Before feeding out entrance cover strip, cover seat panel with cloth (risk of damage/scratching).

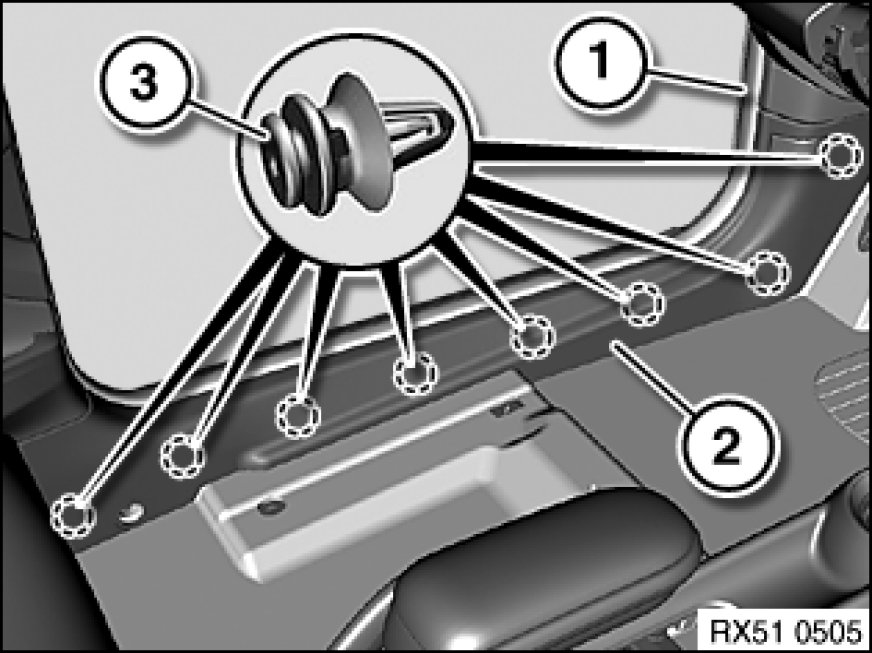

Release mucket (1).
Detach entrance cover strip (2) from clips (3).
Bend entrance cover strip (2) slightly and carefully feed out.

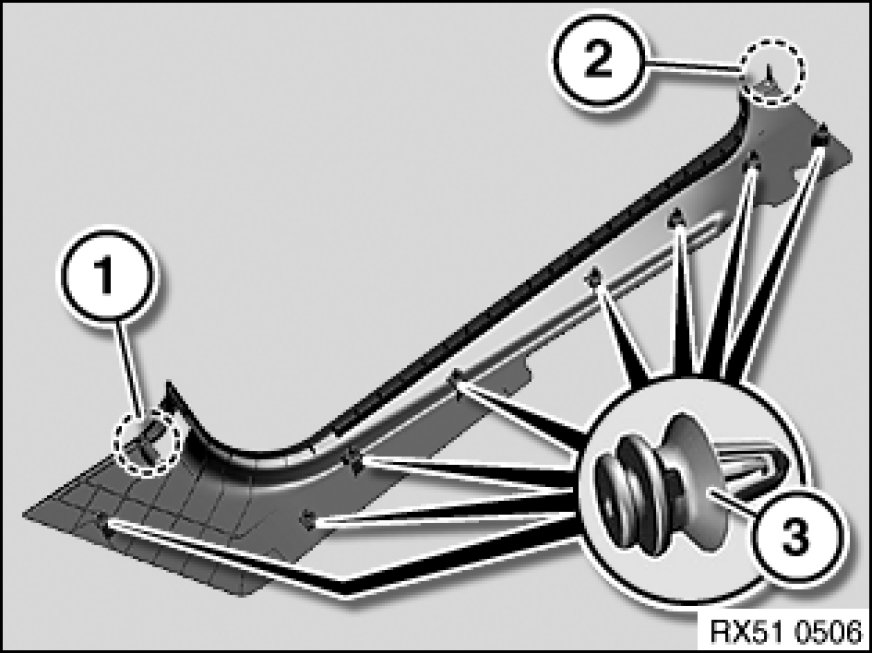

Installation Note:
Guides (1 and 2) must not be damaged.
If necessary, replace faulty clips (3).
