51 47 ... Removing and Installing/Replacing Cover on Inside Left Entrance

51 47 ... - Removing and installing/replacing cover on inside left entrance





Release screw (1).

Installation:
Replace screw and insert with Loctite(R).
Tightening torque 72 11 4AZ [1][2]72 11 Seat Belts.





If necessary, remove floor mat.

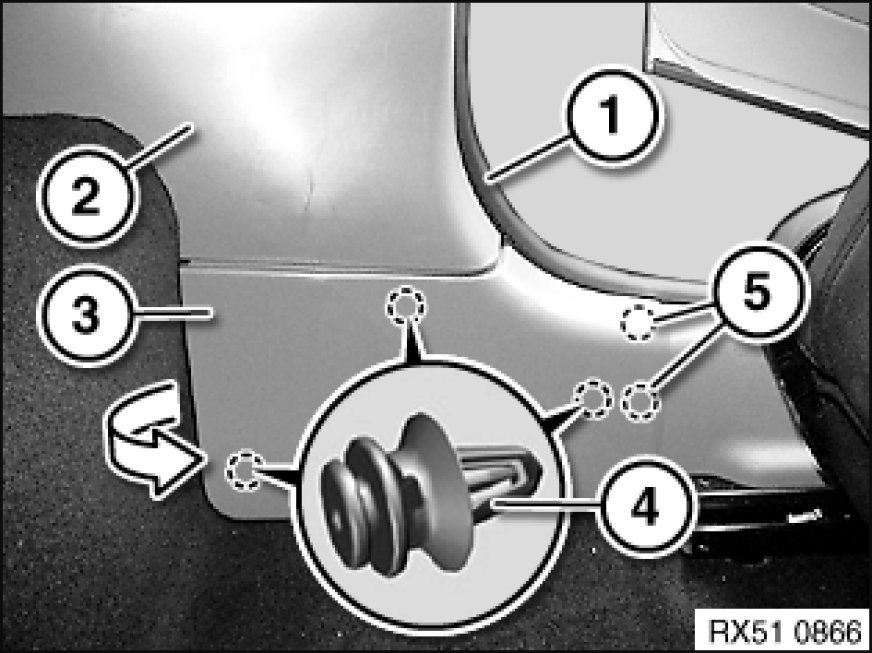

Release mucket (1) in area of side trim panel (2) and cover (3).
Unclip side trim panel (2) from cover (3).
Pull side trim panel (2) inwards slightly and release cover (3) from clips (4).
Feed cover (3) in direction of arrow out of guides (5).





Installation:

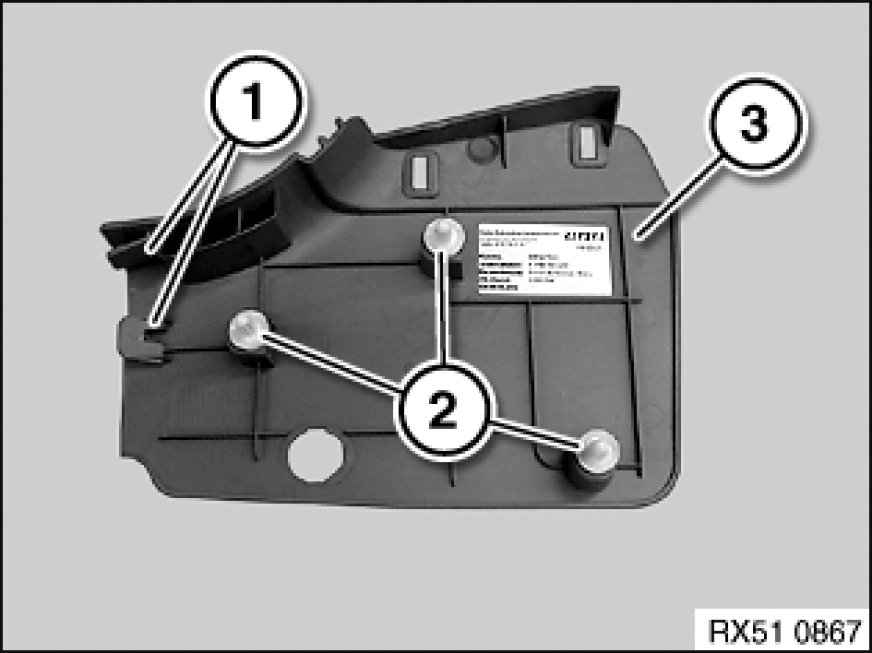

Guides (1) and clips (2) on cover (3) must not be damaged.
