51 46 050 Removing and Installing/Replacing Top Trim on Tail Panel

51 46 050 - Removing and installing/replacing top trim on tail panel





Take out luggage compartment floor trim panel.

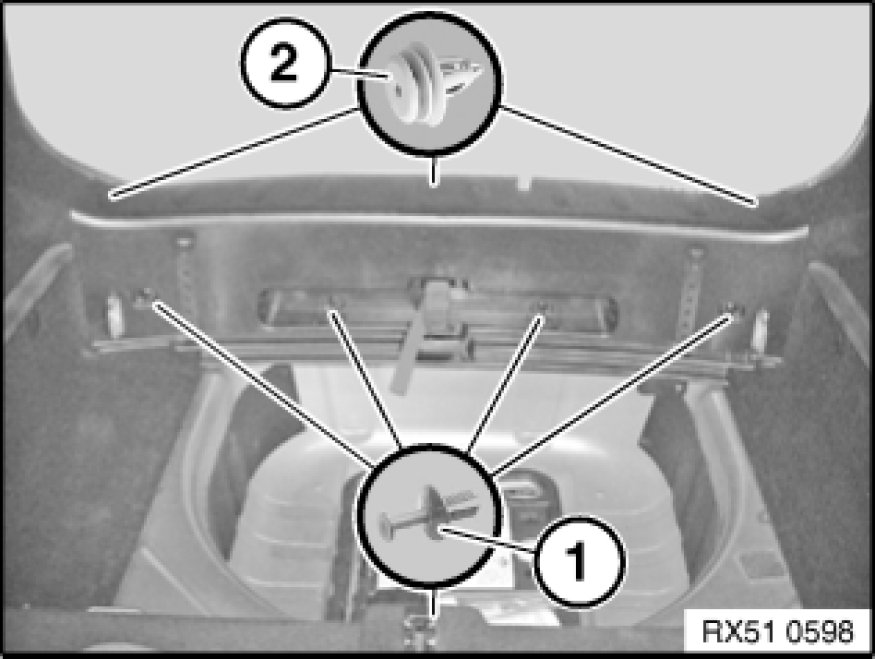

Release expansion rivet (1).
Release trim upwards from clips (2) and feed out.

Installation:
If necessary, replace expander rivets and clips (2).
Make sure seal for rear lid is correctly seated.
