Rear Shelf: Service and Repair

51 47 145 - Removing and installing/replacing roller blind

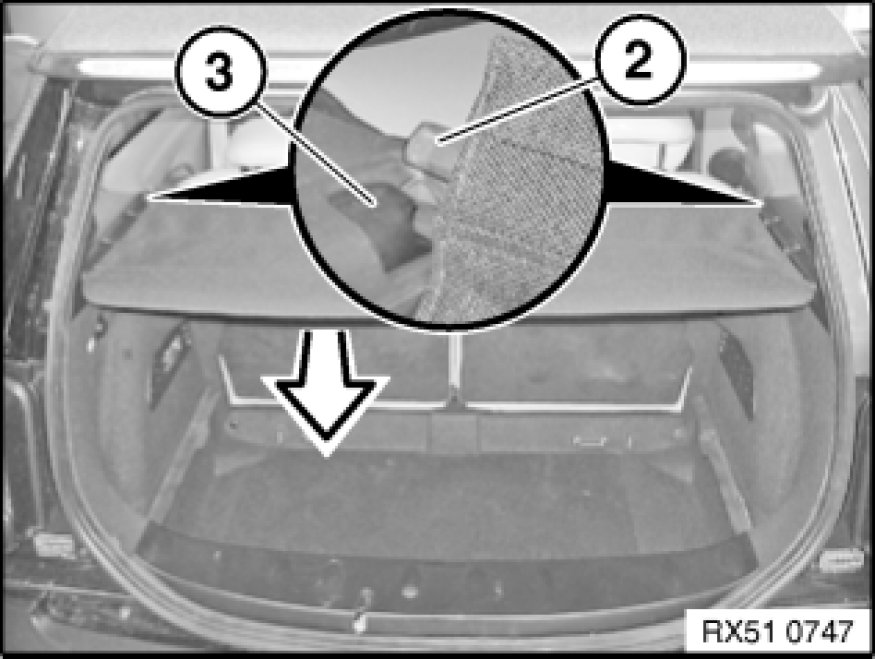

Pull roller blind (1) in direction of arrow and remove from guide (3).

Installation:
Make sure guide pins (2) are correctly seated in guides (3) on both sides.
