51 16 340 Removing and Installing/Replacing Lock For Right Glovebox

51 16 340 - Removing and installing/replacing lock for right glovebox





Necessary preliminary tasks:
- Remove knee protection, passenger's side 51 45 254 Removing and Installing/Replacing Knee Protection on Front Passenger Side

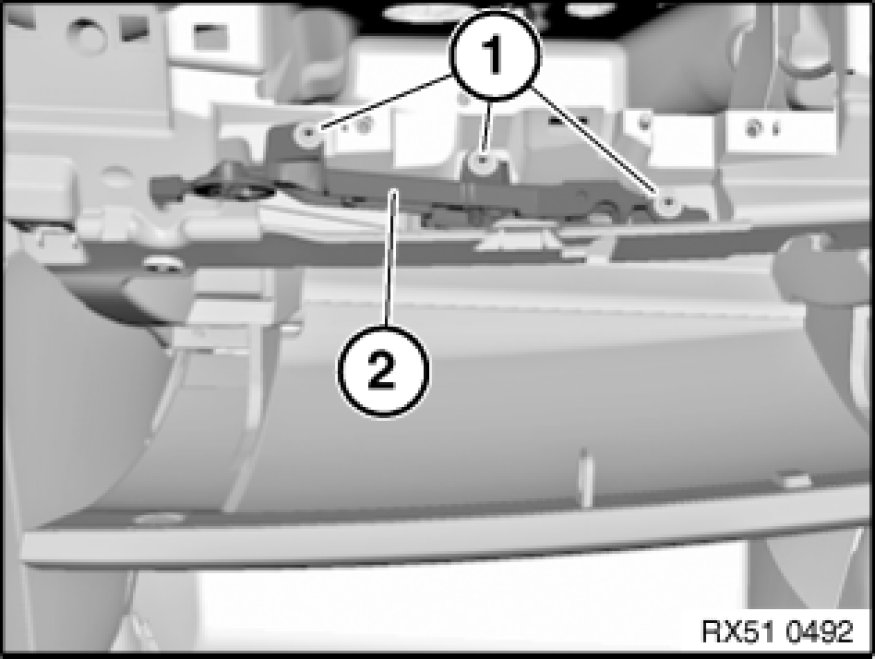

Release screws (1) and feed out lock (2).
