51 14 012 Removing and Installing / Replacing Rear MINI Badge (on Left Splitdoor)

51 14 012 - Removing and installing/replacing rear MINI badge (on left splitdoor)





Important!
The Instructions for number/letter combination cementing serve as the basis for these repair instructions and must be followed without fail.

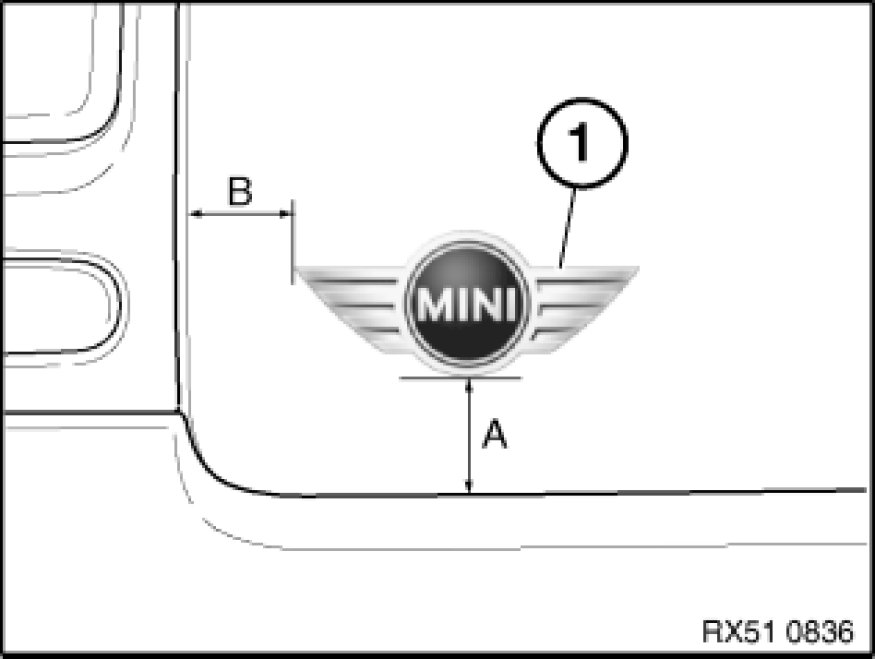

Mark position of MINI badge (1) with adhesive tape according to measurements (A and B).
A = - 43 mm
B = - 36 mm
Pull liner* off MINI badge (1).
Position MINI badge (1) horizontally on marking and stick on.
*Liner is the protective film on the new MINI badge.
