Removing and Installing/Replacing Right Engine Hood/Bonnet Lock

51 23 100 Removing and installing/Replacing Right Engine Compartment Lid Lock

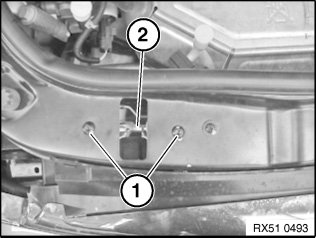

Release screws (1) and feed out bonnet lock (2) sideways.
Tightening torque 51 23 3AZ.

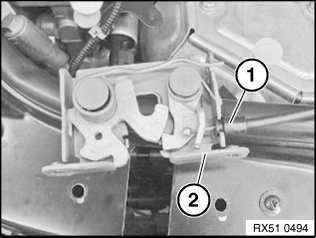

Disengage Bowden cable (1) from hood/bonnet lock.
