65 12 230 Removing and Installing/Replacing DAB Tuner

65 12 230 - Removing and installing DAB tuner





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Note:
Follow instructions for handling optical fibres 61 00 ... Notes on Handling Optical Fibers.





Necessary preliminary tasks:
- Disconnect negative battery cable 61 20 900 Disconnecting and Connecting Battery Negative Lead
- Remove luggage compartment wheel arch trim on side panel on left

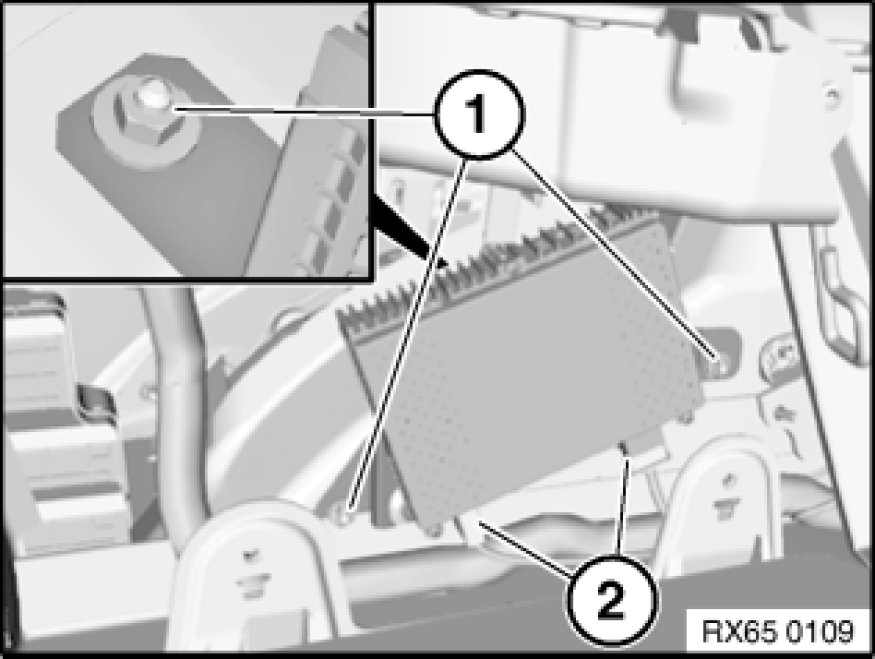

Release screws (1) and remove DAB tuner with bracket.
Disconnect associated plug connections (2).





Replacement:
Release screws (1) and remove DAB tuner (2) from bracket.





Replacement:
Carry out vehicle programming/coding Programming and Relearning.
