Antenna, TV: Service and Repair




65 24 030 - Removing and installing/replacing TV amplifier





Necessary preliminary tasks:
- Remove left C-pillar cover Removing and Installing/Replacing Trim Panel for Rear Left or Right Roof Pillar

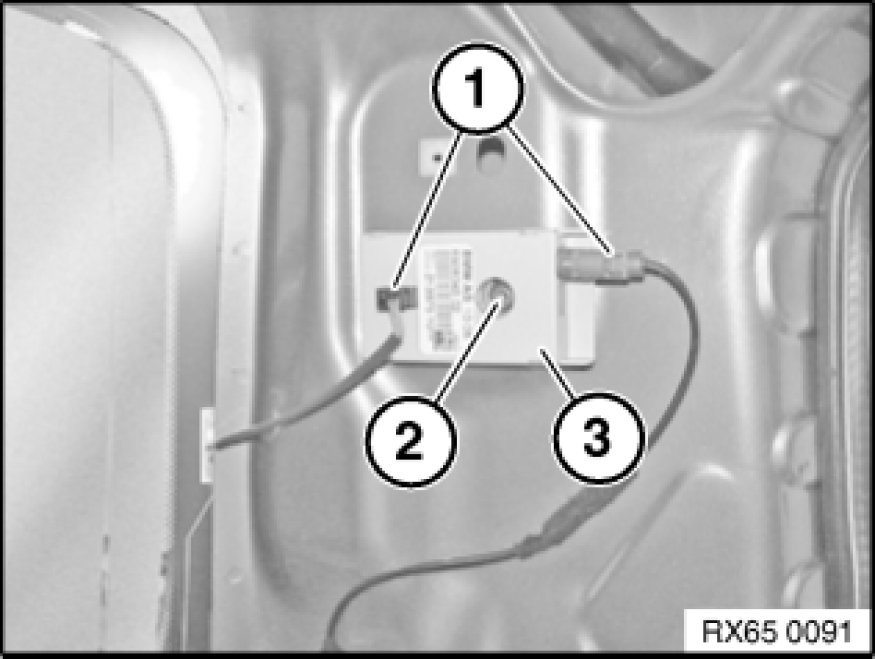

Disconnect plug connection (1).
Release screw (2) and remove TV amplifier (3).
