61 62 060 Removing and Installing/Replacing Rear Window Wiper Motor

61 62 060 Removing And Installing/Replacing Rear Window Wiper Motor







Necessary preliminary work:
- Remove wiper arm for rear window wiper
- Remove trim for rear lid at bottom

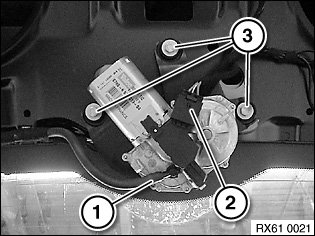

Pull off hose (1).
Disconnect plug connection (2).
Release screws (3). Tightening torque 61 62 2AZ.
Pull rear window wiper motor out of rear window grommet.

Installation note:
Check grommet of wiper shaft for signs of damage, replace if necessary.
Adjust spray nozzle.
