61 62 030 Removing and Installing/Replacing Wiper Arm on Rear Window

61 62 030 Replacing (Removing And Installing) Wiper Arm For Rear Window Wiper

Special tools required:

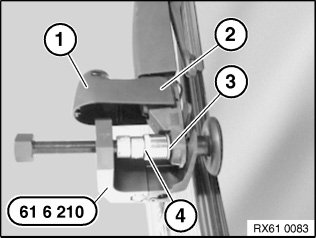

Open protective cap (1).
Slacken nut (3) two turns.
Tightening torque 61 62 1AZ.

IMPORTANT: To avoid damaging the spray nozzle, it is necessary in addition to the special tool to use a suitable socket for detaching the rear window wiper from the wiper motor.

Press off wiper arm (2) 61 6 210 with special tool and suitable socket (4).
Unscrew nut (3).
Remove wiper arm (2).







Installation:
Rear window wiper must be in rest position.

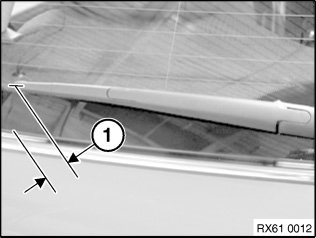

Adjust distance (1) between wiper arm and rear window edge.

(1) 44 mm

Replacement:
Remove and install rear window wiper blade .
