61 62 100 Adjusting Jet Nozzle For Rear Window Washer Unit

61 62 100 Adjusting Jet Nozzle For Rear Window Washer Unit

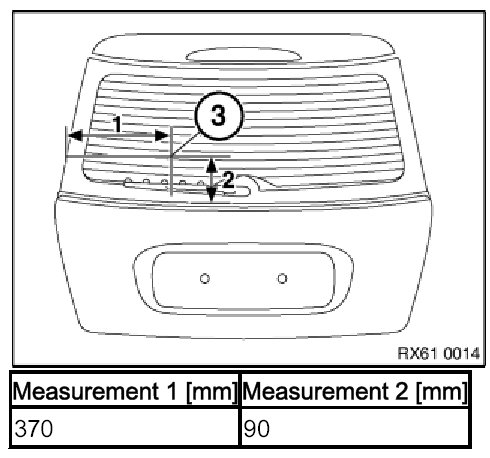

Adjustment measurements:

NOTE: The spray must meet the contact point (3).







CAUTION: Do not insert any pointed objects in nozzle (risk of damage).







Mark contact point with adhesive tape. Adjust jet nozzle (1) with screwdriver in slot.
