33 1 300 Rillex Tapered Roller Bearing Extractor

33 1 300 Rillex tapered roller bearing extractor

Note: For bevel pinion and differential case (final drive) / for mounting sprocket wheel on crankshaft (M70) / for removing bearing inner race from drive flange (E36, E46)

Transmission: Rear axle differential type G, K, M

Storage location: B6, C6

Order number: 33 1 300

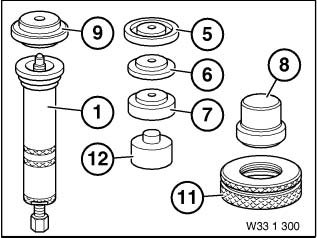

Rillex tapered roller bearing extractor

Consisting of:

1 = 33 1 301 Connecting piece with spindle

1 = 33 1 311 Gripper

2 = 33 1 312 Thrust piece

Note: For removing bearing inner race from drive flange - Series: E36/5

In conjunction with: 007500

5 = 33 1 305 Thrust piece (old)

6 = 33 1 306 Thrust piece

7 = 33 1 307 Thrust piece

8 = 33 1 308 Thrust piece

9 = 33 1 309 Thrust piece

Note: For final drive and for mounting sprocket wheel on crankshaft (M70)

In conjunction with: 00 8 500
