24 0 020 Oil Pressure Test Accessories

24 0 020 Oil pressure test accessories

Minimum set: Mechanical tools





In conjunction with: 13 3 061 and BMW DIS

Note: For pressure gauge 13 3 061 or BMW DIS for checking oil pressure

Transmission: 3 HP 12, 3 HP 20, 3 HP 22, 4 HP 22, 4 HP 24, A4S 270R, A4S 310R, A5S 300J, A5S 310Z, A5S 440Z, A5S 560Z

Storage location: B23, B24, single

Order number: 24 0 020

Oil pressure test accessories

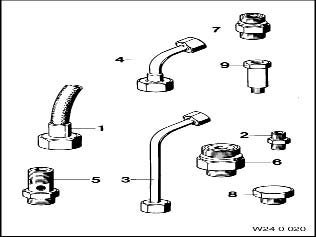

Consisting of:
1 = 24 0 021 Pressure hose with connection

Note: Pressure hose 1.7 m, connection M12x1.5 - M14x1.5 external thread/for checking the various converter pressures / Transmission: A4S 310R, A4S 270R

2 = 24 022 Reducer

Note: For checking main pressure (3 HP 22, A5S 310Z) and clutch A (ZF transmissions) / transmission: 3 HP 22, A5S 310Z, A5S 560Z and all ZF transmissions

In conjunction with: 24 0 140

3 = 24 0 023 Pipe bend, 145 mm

Note: Extended length 145 mm Transmission: 4 HP 22, 4 HP 24

In conjunction with: 13 6 052

4 = 24 0 024 Pipe bend, 90 mm

Note: Extended length 90 mm

In conjunction with: 13 6 052

5 = 24 0 025 Banjo bolt

Note: M20x1.5 - M 18x1.5 / For checking converter pressure / Transmission: 3 HP 12

In conjunction with: 24 0 024

6 = 24 0 026 Reducer

Note: M24x1.5 - 20x1.5 / For checking main pressure / Transmission: 3 HP 20

In conjunction with: 24 0 024

7 = 24 0 027 Reducer

Note: M20x1.5 - M 18x1.5 / For checking main pressure (3 HP 12) and converter pressure (3 HP 20) / Transmission: 3 HP 12, 3 HP 20

In conjunction with: 24 0 024

8 = 24 0 028 Screw plug

Note: M 18x1.5 / For closing off oil supply lines while checking converter pressure Transmission: 3 HP 20

9 = 24 0 029 Adapter

Note: For closing off supply and return lines while checking main pressure / Transmission: 3 HP 22
