Vehicle - MINI GP, VIN-Specific Numbered Decals
SI M51 03 13Body Equipment
April 2013
Technical Service
SUBJECT
MINI GP: VIN-specific Numbered Decals
MODEL
R56 John Cooper Works GP Hardtop
With option O7KH (John Cooper Works GP)
INFORMATION
Each "impression" of the limited edition MINI JCW GP vehicle is to be fitted with a unique VIN-specific numbered decal.
Only one decal is intended per vehicle, applied onto the roof over the driver's door.
SITUATION
Due to unexpected delays in GP number decal production, your MINI dealer may have received a JCW GP without its numbered decal installed.
The numbered decals that require installation were sent directly to your dealerships using FedEx Priority Overnight, addressed to the Sales Manager. See the Parts Information section below.
If an affected JCW GP has been traded to another MINI dealer, please forward the decal to that dealer's Sales Manager.
PROCEDURE
Install one VIN-specific numbered decal (only one decal is to be applied to each car).
The second decal is a backup if the first one becomes damaged. Please ensure the second decal is stored safely.

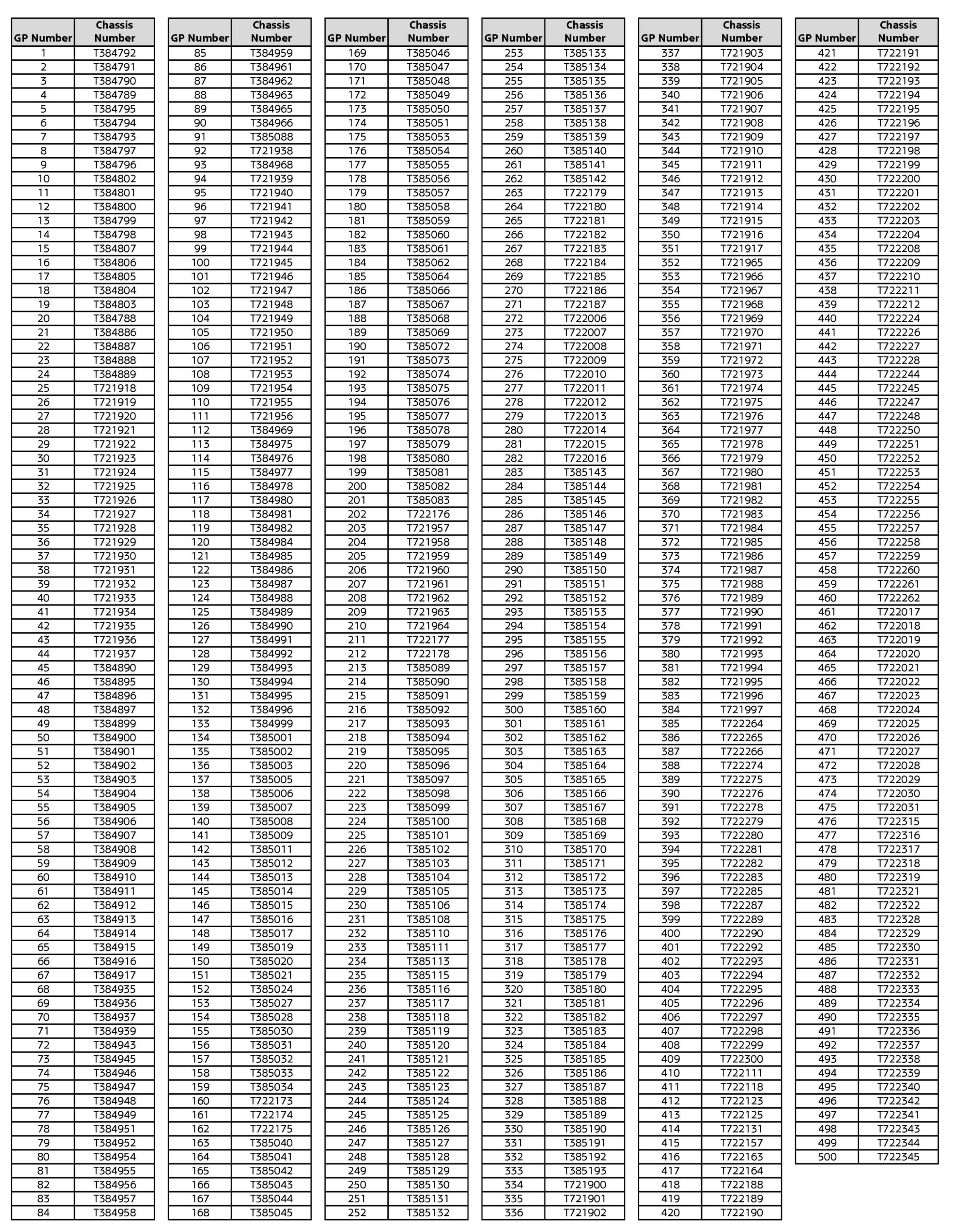

If necessary, use to the attached "Master GP Number/Chassis" list to confirm the MINI JCW GP vehicle's "assigned number" to be installed on the vehicle.
Application of the correct numbered decal on the vehicle is crucial.

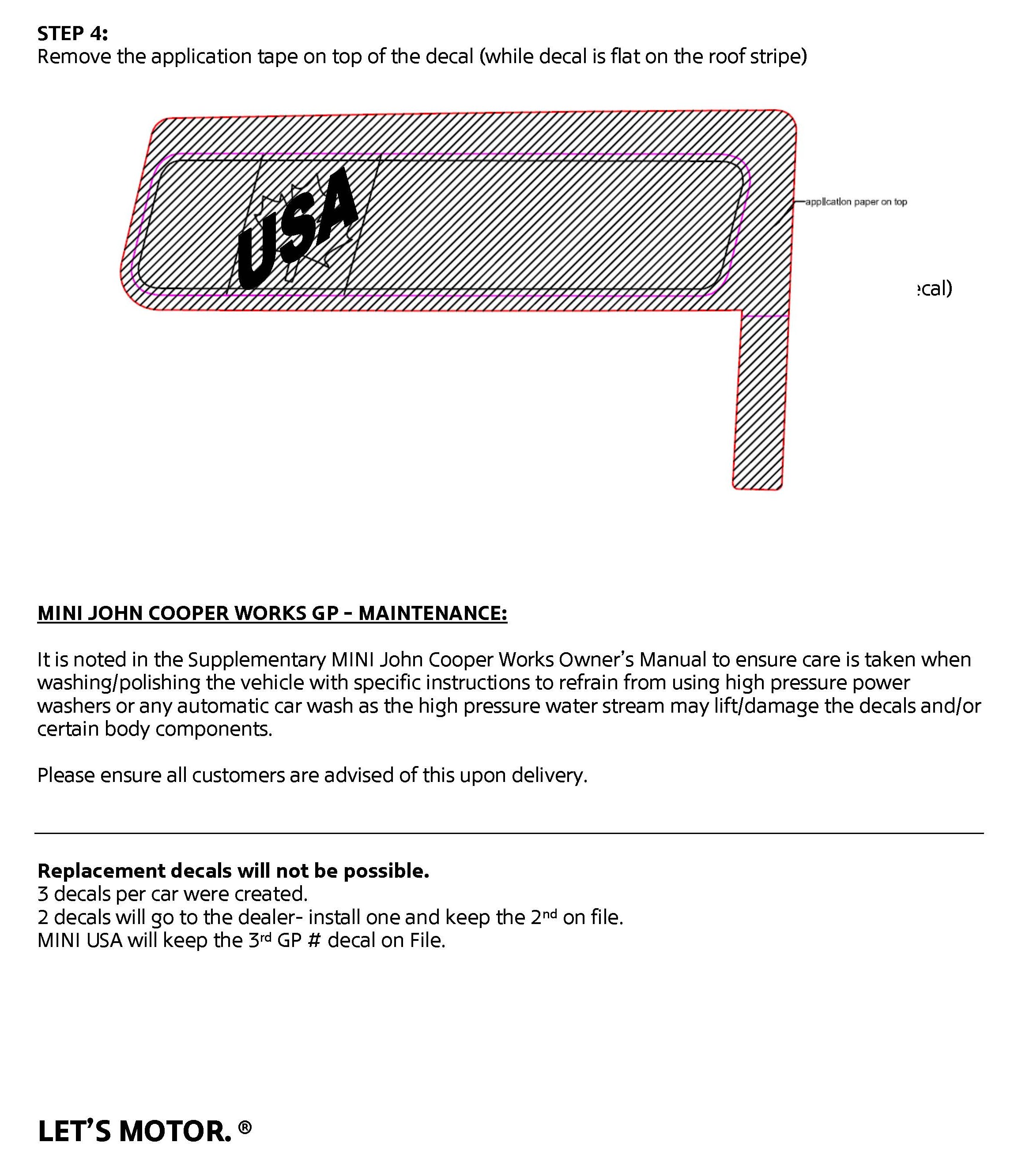

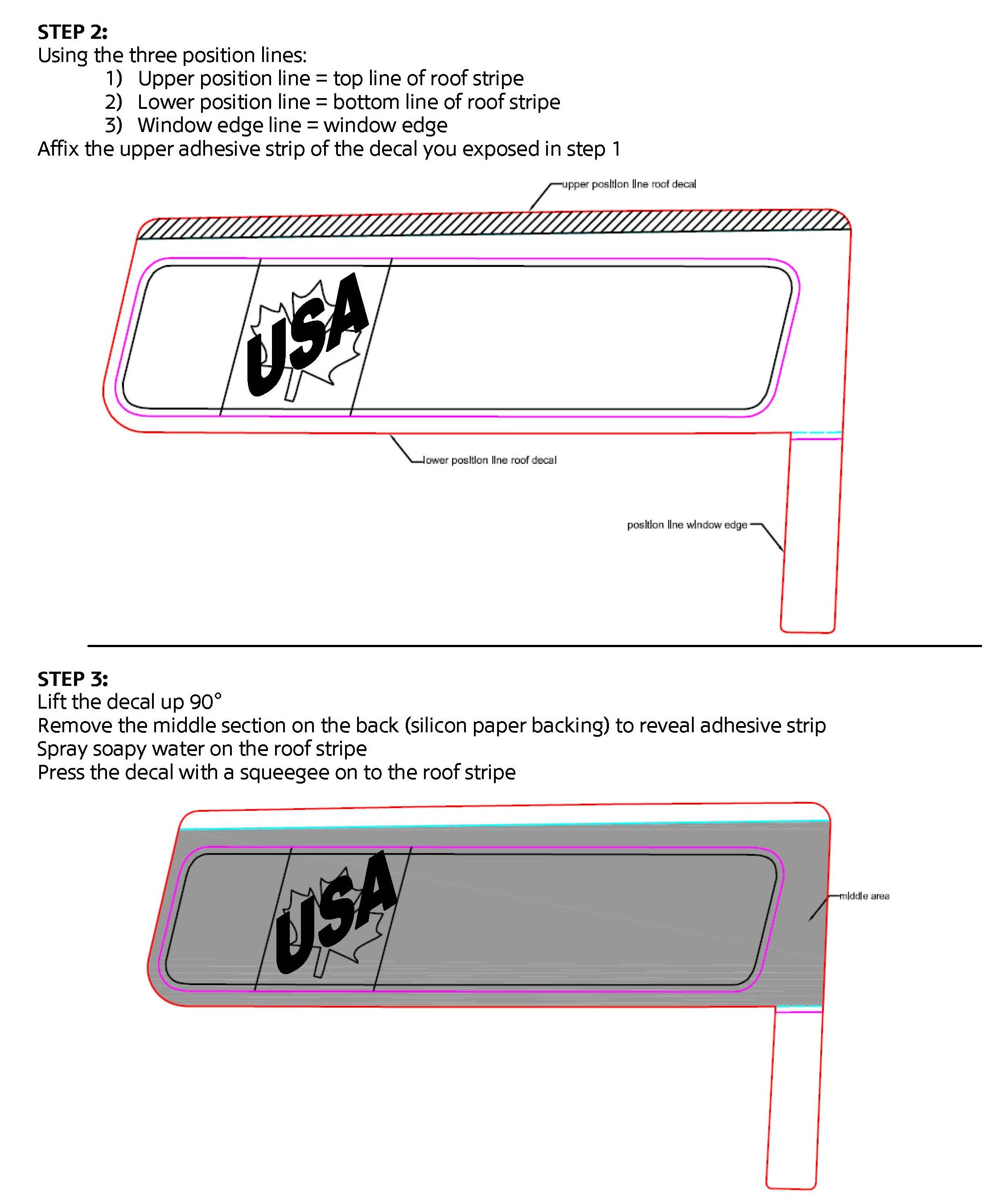

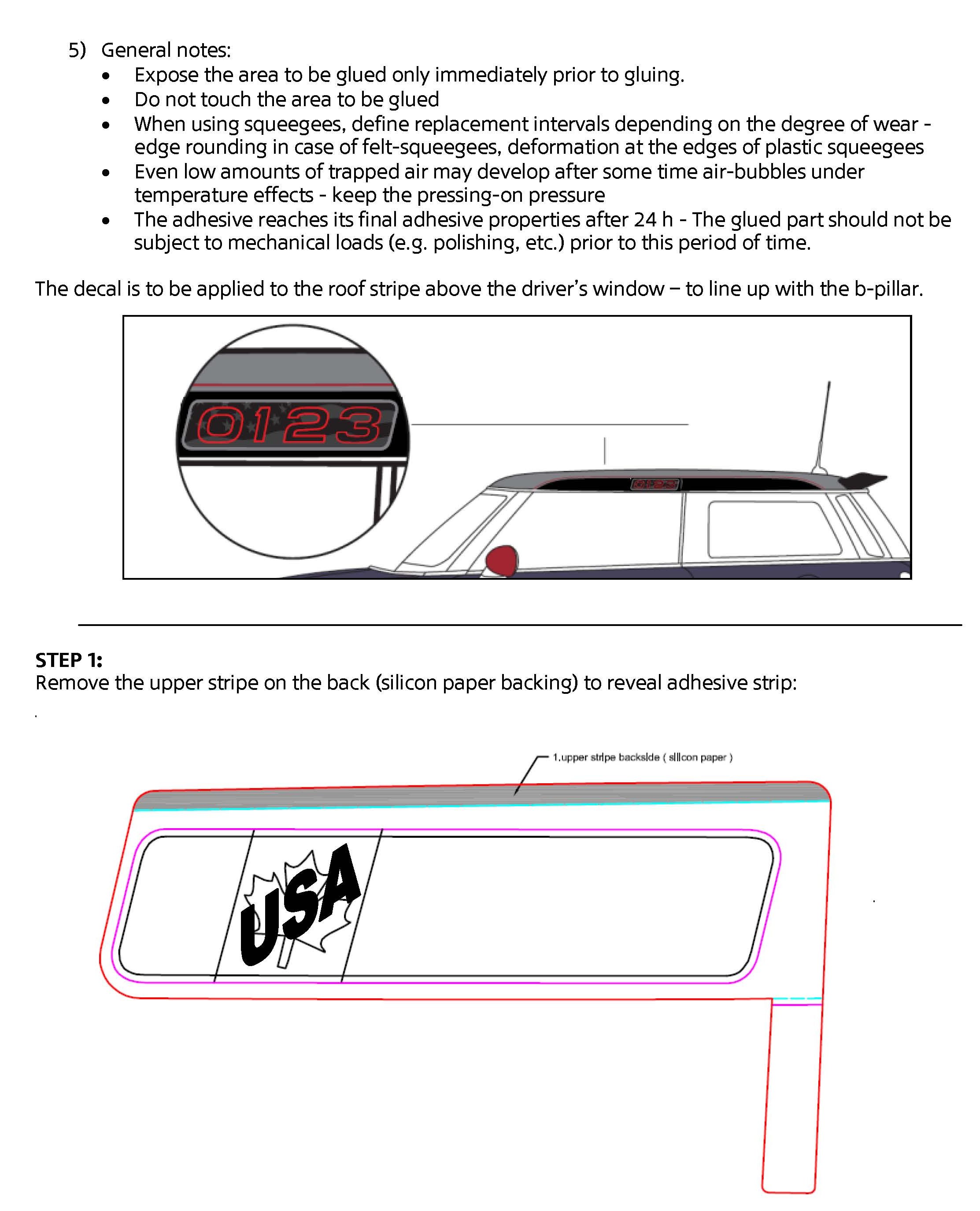

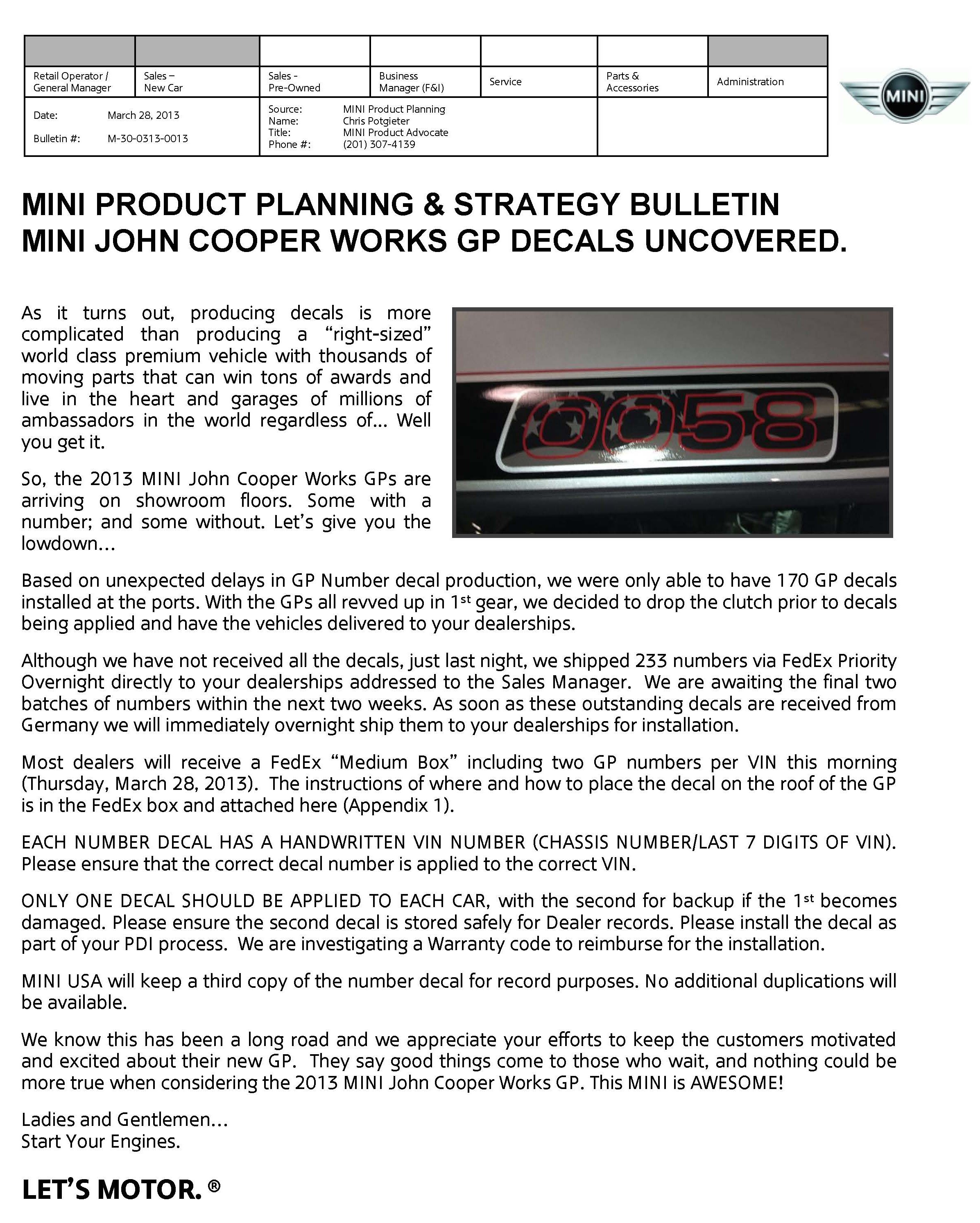

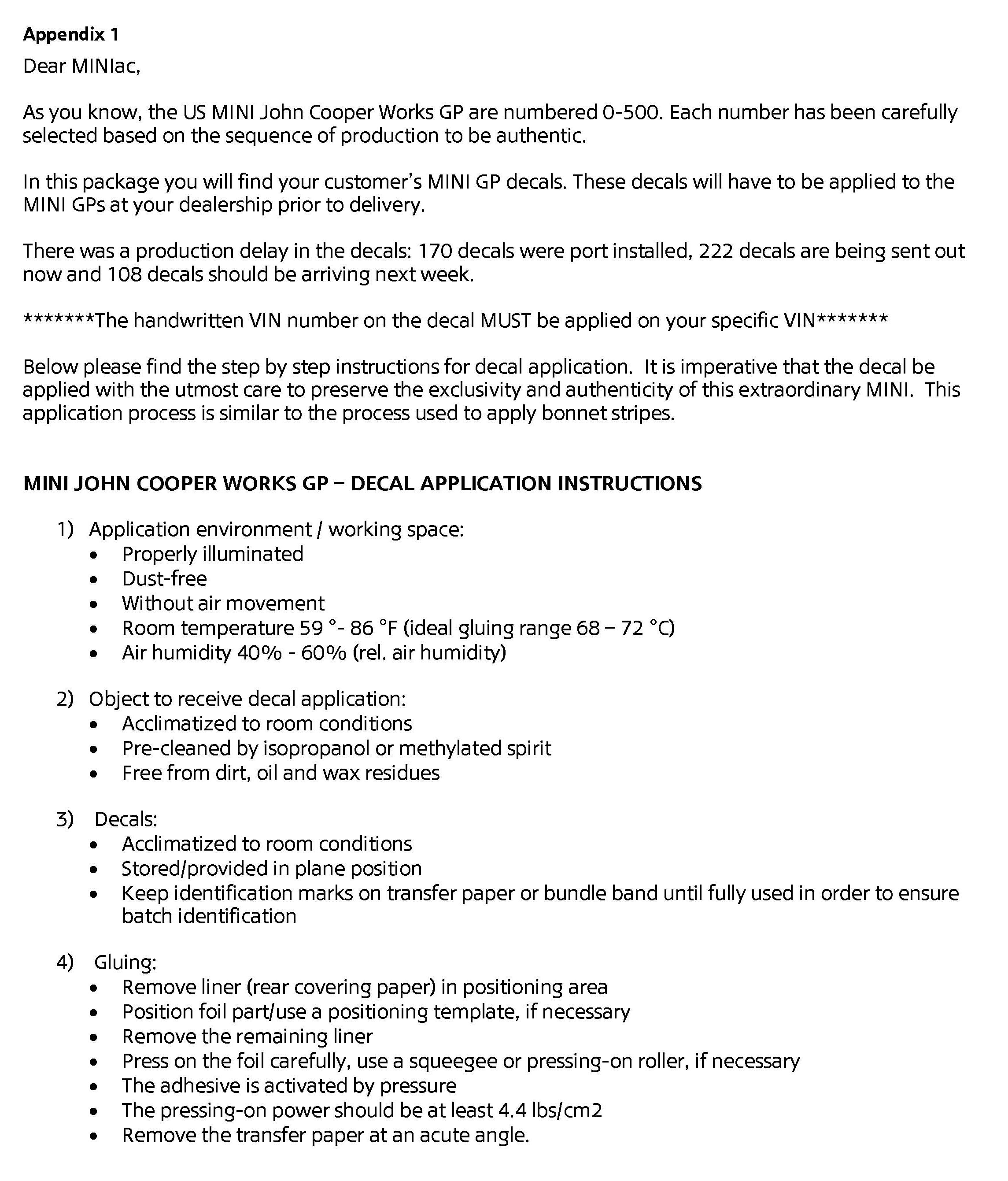

Refer to the attached MINI Product Planning & Strategy bulletin M-30-03 13-0013, "MINI John Cooper Works GP Decals Uncovered" for more information, including decal application instructions.
PARTS INFORMATION
The FedEx "Medium Box" includes the following:
^ Two GP numbers per chassis number/VIN
^ Each number decal has a handwritten chassis number (last seven digits of the VIN)
^ The instructions of where and how to place the decal on the roof of the GP
The last group of number decals should arrive at your dealer by the end of April 2013.

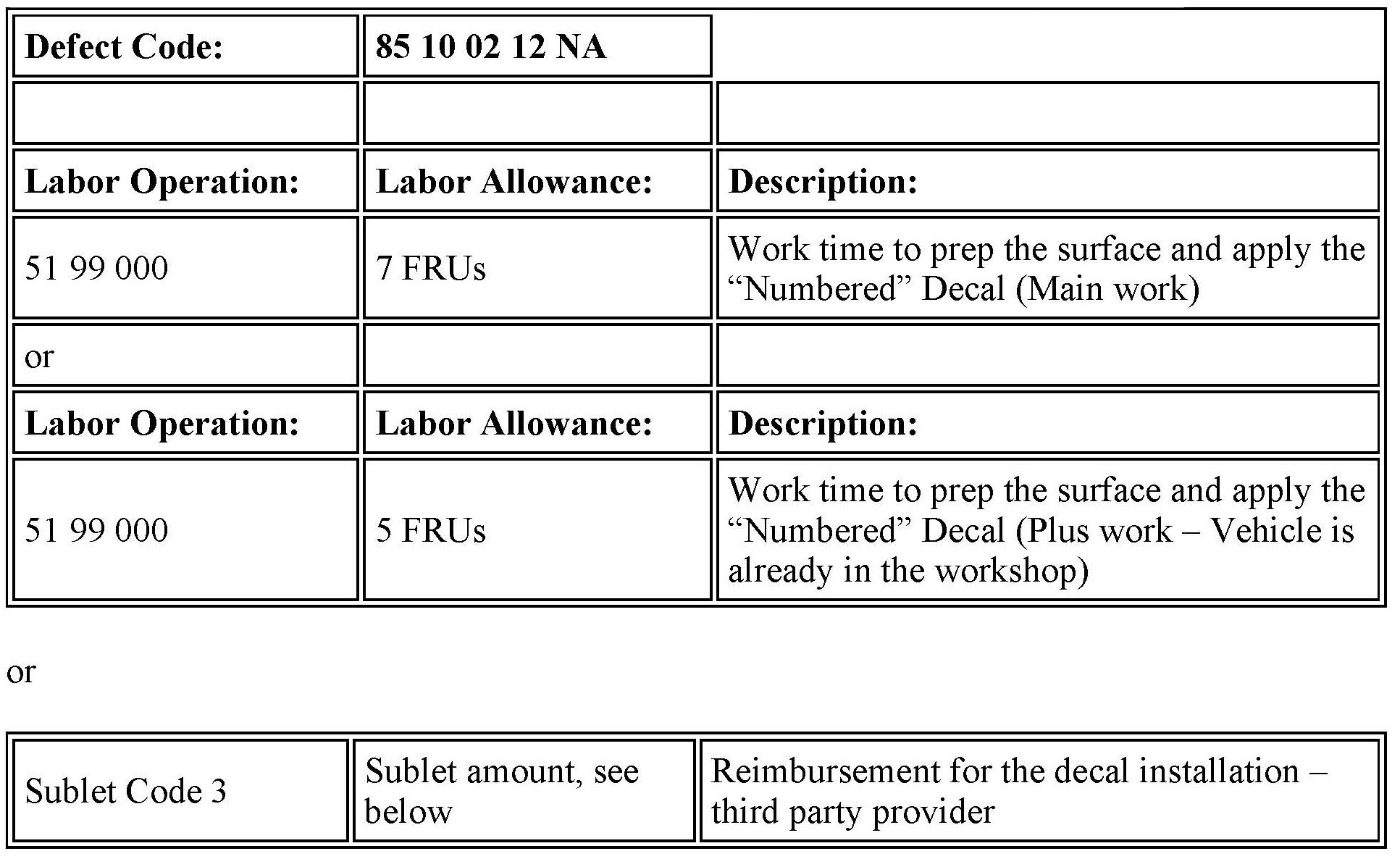

WARRANTY INFORMATION
Covered under the terms of the MINI New Passenger Limited Warranty
Third-party provider sublet work to install the numbered decal: Invoice this item on the repair order at the actual cost charged with no handling or markup. The sublet amount must also include any discounts or allowances.
ATTACHMENTS
View PDF attachment View PDF attachment M510313_GP_Numbers_Chassis_Reference.
View PDF attachment View PDF attachment M510313_M-30-0313-0013_MINI-GP-Decal.
