63 99 295 Replacing Bulb For Left or Right Auxiliary Direction Indicators

63 99 295 Replacing Bulb For Left Or Right Auxiliary Direction Indicator

WARNING: Follow instructions for handling light bulbs (exterior lights).

Necessary preliminary tasks:
- Unlock engine hood/bonnet

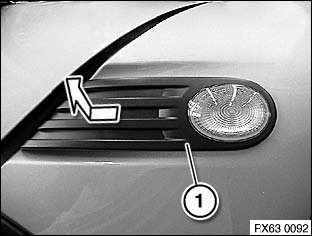

Slide trim with auxiliary direction indicator (1) forwards and remove in direction of arrow from side panel.

Installation:
Make sure trim with auxiliary direction indicator (1) is correctly engaged on side panel.

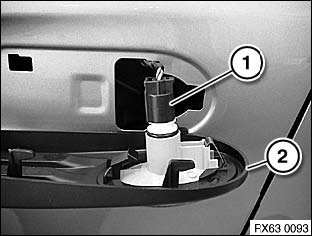

Turn bulb holder (1) counterclockwise and remove trim containing auxiliary direction indicator (2).

Installation:
Make sure bulb holder (1) is correctly engaged on auxiliary direction indicator.

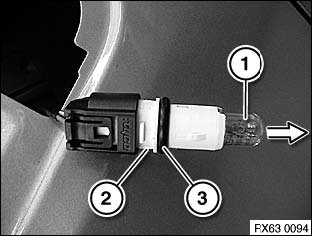

Pull bulb for auxiliary direction indicator (1) out of bulb holder (2).

Installation:
Make sure sealing ring (3) is correctly seated on bulb holder (2).
Note type of bulb.
