63 31 020 Removing and Installing/Replacing Footwell Light

63 31 020 Removing And Installing/Replacing Footwell Light







IMPORTANT: Follow instructions for handling light bulbs (interior lights).

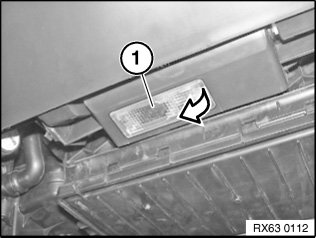

Lever out footwell light (1) in direction of arrow.
Disconnect associated plug connection and remove footwell light (1).

Replacement:
- If necessary, remove bulb.
- Note bulb type.
