52 26 012 Removing and Installing/Replacing Backrest For Right Rear Seat

52 26 012 Removing And Installing/Replacing Backrest For Right Rear Seat







Unlock backrests and fold down.

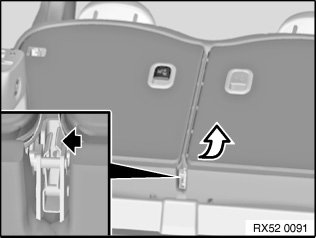

Press retaining tab in centre of car and lift right backrest out of central hinge.

Installation:
Backrest must audibly snap into place in central hinge.

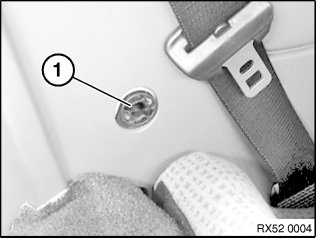

NOTE: Turn backrest and remove bearing bushing (1).
