54 13 055 Replacing Seal For Frame of Panorama Glass Roof

54 13 055 Replacing Seal For Frame Of Panorama Glass Roof







Necessary preliminary work:
- Remove panorama glass roof completely







NOTE: Follow repair instructions for bonded seals on panorama glass roof.

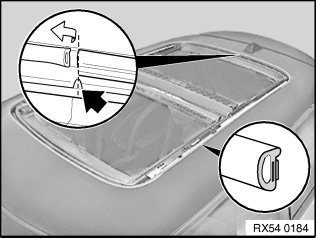

Pull off seal at contact edge starting from body aperture (peel off).

Installation note:
- Clean bonding surface with adhesive remover (sourcing reference, refer to EPC - Electronic Parts Catalogue).
- Press seal without stretching (squashing).
- Stick on seal in sections.
- Establish sealing joint.

IMPORTANT:
- Do not touch adhesive area.
- Surface temperature ≥ 20 °C Incorrect bonding of the gasket will result in leaks.
