54 13 053 Replacing All Gasket on the Rear Glass Slide/Tilt Sunroof Cover

54 13 053 Replacing All Gasket On The Rear Glass Slide/Tilt Sunroof Cover







Necessary preliminary work:
- Remove glass slide/tilt sunroof cover at rear







NOTE: Follow repair instructions for bonded seals on panorama glass roof.

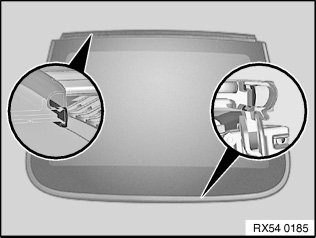

Pull seals off glass slide/tilt sunroof cover.

Installation note:
- Clean bonding surface with adhesive remover (sourcing reference, refer to EPC, Electronic Parts Catalogue)
- Press seal without stretching (squashing).
- Stick on seal in sections

IMPORTANT:
- Do not touch adhesive area.
- Surface temperature ≥ 20 °C Incorrect bonding of the seal will result in leaks.
