Upper Side Moulding / Trim: Service and Repair

51 36 060 Replacing B-pillar Trim On Rear Left Or Right Side Window

IMPORTANT: The Instructions on component cementing with double-sided adhesive tape serve as the basis for this repair instruction and must be observed without fail.







Remove and discard trim (1).

Installation:
Clean side window.

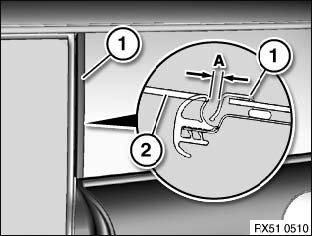

Stick on trim (1) in accordance with dimension (A) to door window glass (2).

A=6 ± 1 mm
