51 48 ... Removing and Installing/Replacing Sound Insulation on Cowl Panel or Windscreen

51 48 ... Removing And Installing/Replacing Sound Insulation On Cowl Panel/Windscreen







NOTE:
Sound insulation can only be replaced with the following removed:
- Windscreen







IMPORTANT: Press down expanding foam tape (5) shortly before installing windscreen (2) (with hand roller) or stick on if replacing. Relaxed expanding foam tape could crush cement bead (3) (leaks, wind noises).

Replacement:
Attach new expanding foam tape (5) to bulkhead upper section (6).
Expanding foam tape (5) may only be stuck up to corner point of bulkhead upper section (6).

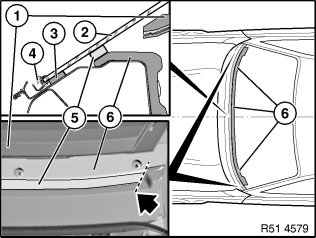

1 Dashboard trim panel
2 Windscreen
3 Glue bead
4 Retaining strip, bottom
5 Expanding foam tape (sound insulation, cowl panel)
6 Bulkhead upper section
