51 24 130 Removing and Installing/Replacing Striker For Tailgate Lock



51 24 130 Removing And Installing/Replacing Striker For Tailgate Lock







Necessary preliminary tasks:
- Remove trim for tailgate

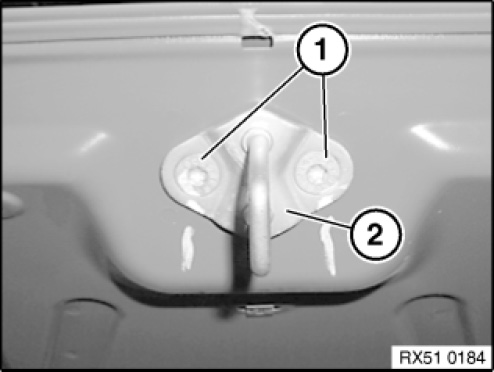

Release bolts (1) and remove striker (2).

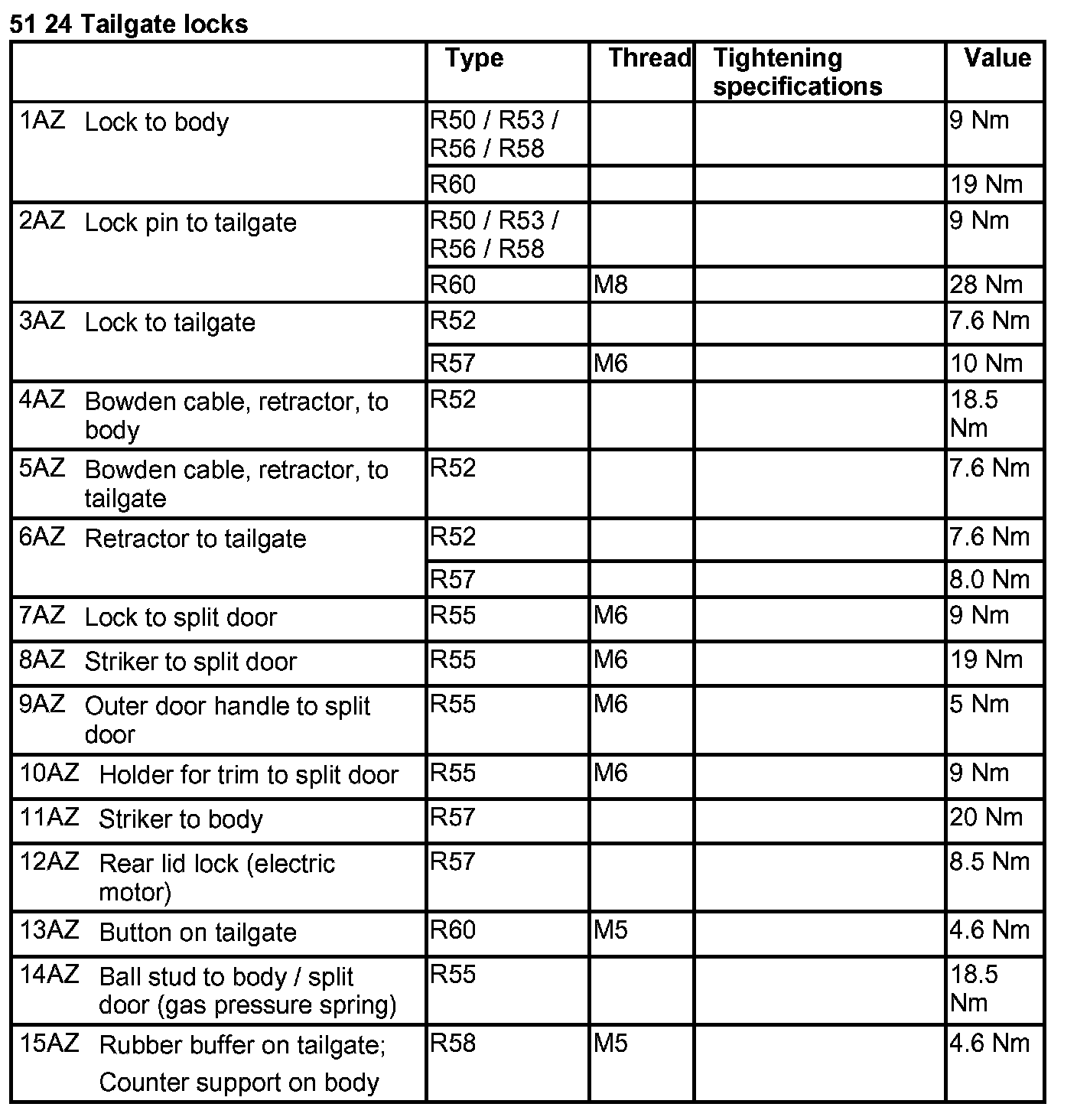

Tightening torque 51 24 2AZ .
