61 61 270 Removing and Installing/Replacing Bracket For Windscreen Wiper System Complete With Motor

61 61 270 Removing And Installing/Replacing Bracket For Windscreen Wiper System Complete With Motor







Necessary preliminary work:
- Remove left cowl panel cover

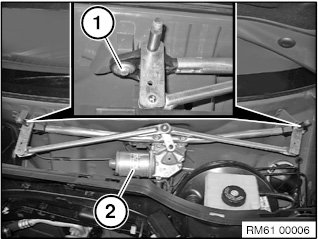

Release screws (1).
Tightening torque 61 61 2AZ.
Carefully raise wiper bracket (2), release and disconnect plug connection behind it.
Remove wiper bracket (2).

Installation note:
Make sure the wiper bracket (2) fits correctly.
