Windshield Moulding / Trim: Service and Repair

51 31 045 Removing And Installing/Replacing Trim Cover On A-pillar (Outer), Left Or Right







Necessary preliminary work:
- Remove trim strip from side panel







NOTE: Graphics originate from R56.

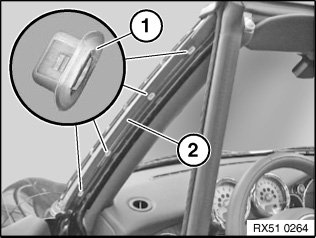

Release screws (1).

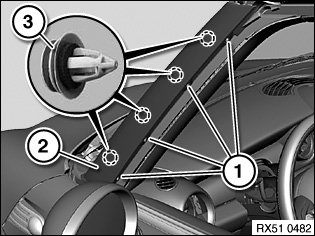

Release trim (2) at clips (3) and remove.

Installation note:
If necessary, replace faulty clips (3).







Installation note:
If necessary, replace faulty nut inserts (1) on A-pillar (2).
