Quarter Window Regulator: Service and Repair

51 37 000 Removing And Installing/Replacing Complete Rear Left Or Right Power Window Unit







Necessary preliminary work:
- Remove door window glass

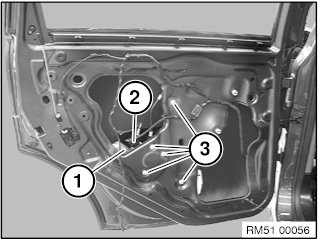

Unlock and disconnect plug connection (2) at power window regulator flat motor (1).


Release nuts (3) on power window regulator (1).

Tightening torque 51 35 4AZ.

Feed out power window regulator (1) from inner door panel.







Replacement
- Modify flat motor.
