Rear Door Window Motor: Service and Repair



67 62 020 Removing And Installing/Replacing Flat Motor For Rear Left Or Right Power Window Regulator







Necessary preliminary work:
- Completely remove power window regulator at rear

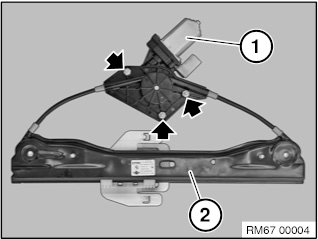

Release nuts at marked points.
Remove flat motor for power window unit (1) from power window unit (2) in direction of arrow.
