24 35 565 Replacing Speed Sensor (Input) (AISIN)

24 35 565 Replacing speed sensor (input) (AISIN)







IMPORTANT:
After completion of work, check transmission oil level.
Make a note of drained ATF quantity.
Required replenishment quantity approx. 4.5 litres.







IMPORTANT:
Use only the approved automatic transmission oil in this automatic transmission.
Otherwise the automatic transmission may incur extensive damage.
Do not drain oil before the transmission has cooled down.







Necessary preliminary tasks:
- Remove hydraulic shift unit

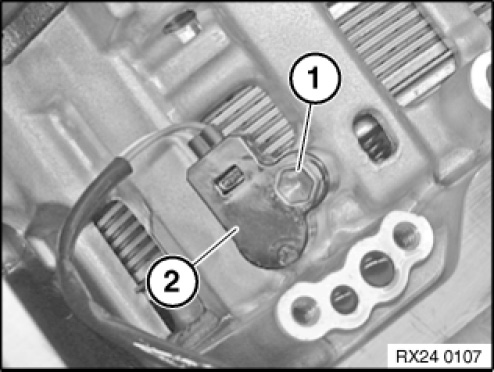

Release screw (1).
Tightening torque: 24 11 19AZ.
Remove sensor (2).
