25 11 300 Replacing Gear Selector Cable

25 11 300 REplacing Gear Selector Cable






Necessary preliminary work:
- Detach gear selector cable from gearshift bracket
- Remove intake silencer housing

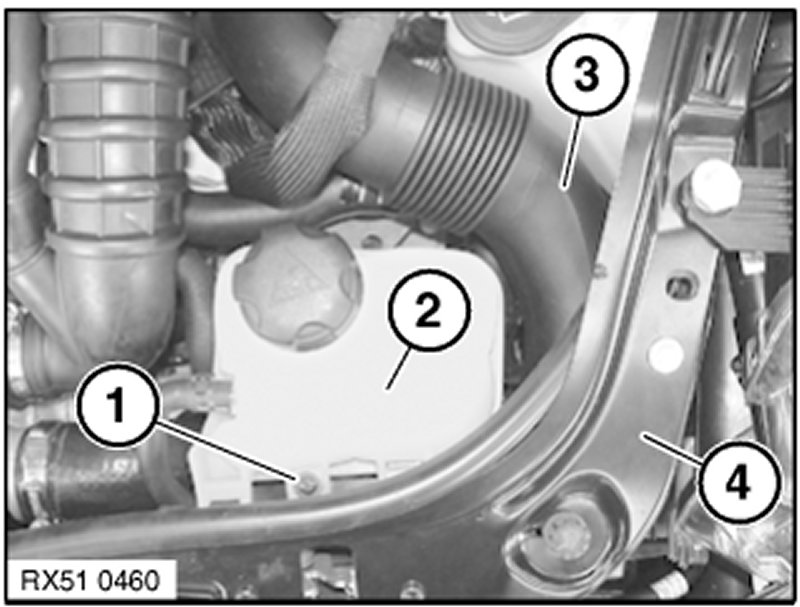

Undo bolt (1) and place coolant expansion tank (2) to one side.
Remove intake pipe (3).

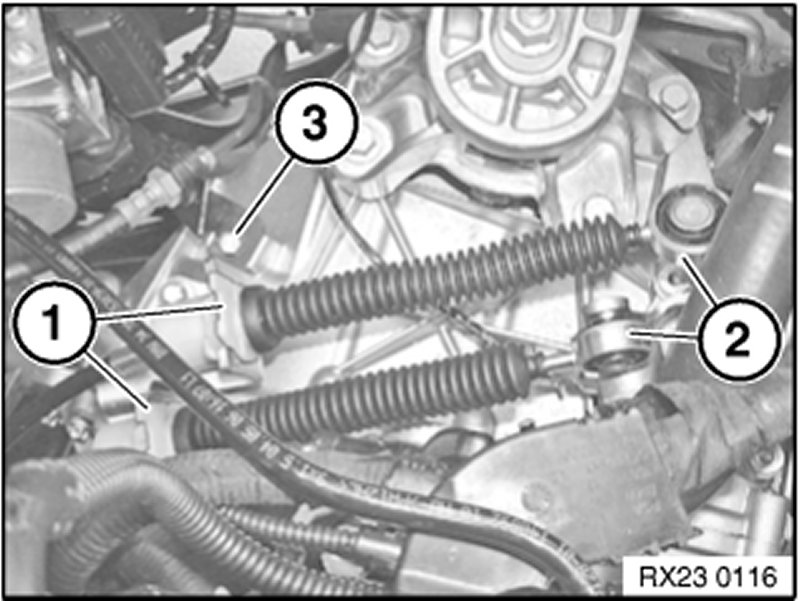

Release clips on limit position/holder (1).
Release retaining clips and detach gear selector cables (2) at ball joints.

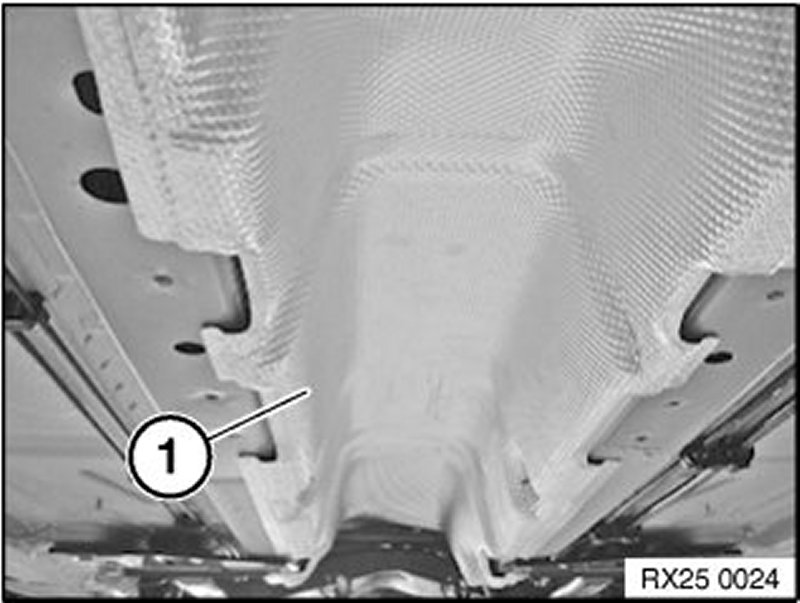

Remove heat shield (1).

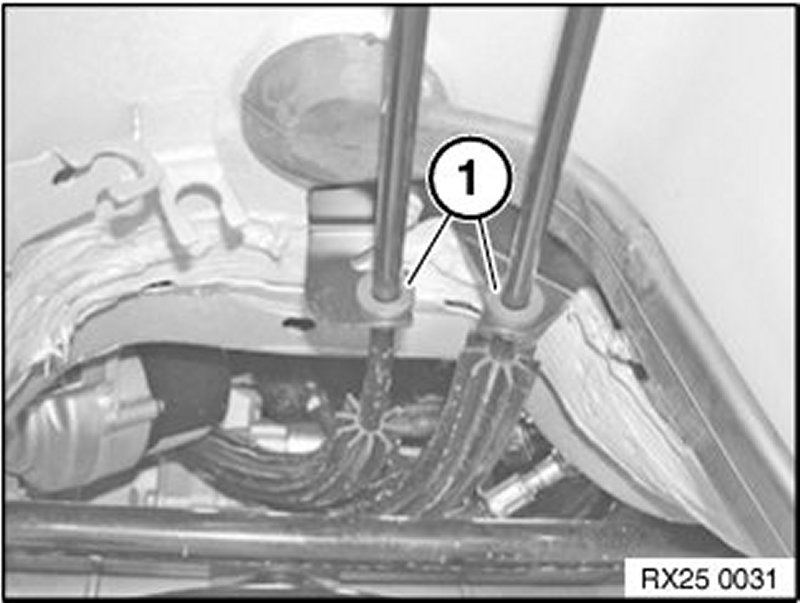

Detach gear selector cable (1) from floor panel.
