25 11 071 Replacing Knob for Shift Lever

25 11 071 Replacing Gearshift Lever Knob






Detach trim cover (1) in upward direction.

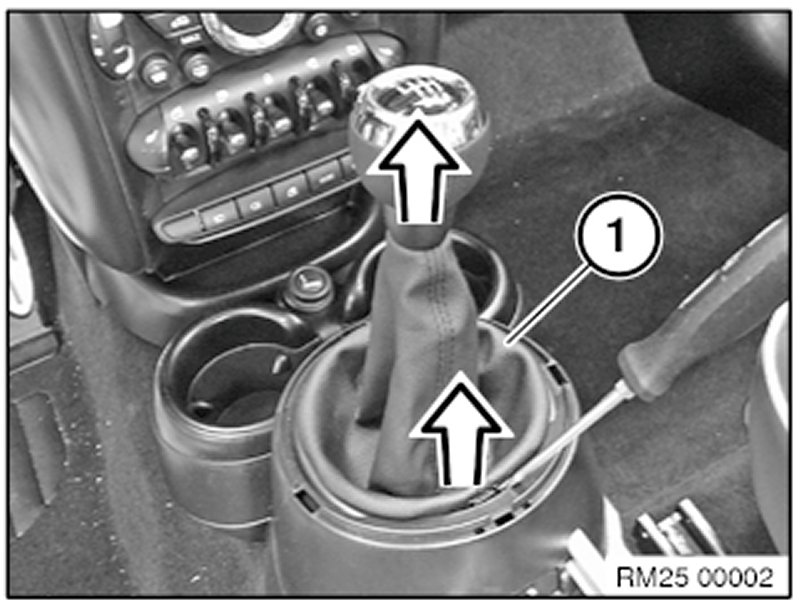

Use suitable tool to release gaiter retainers (1).
Tug firmly to remove knob.

Note:
Do not twist knob during removal as this would cause the anti-twist lock in the knob to shear off.

Installation note:
Fit knob on gearshift lever, align and press on until it snaps noticeably into place.






Pull gaiter over gearshift lever knob.

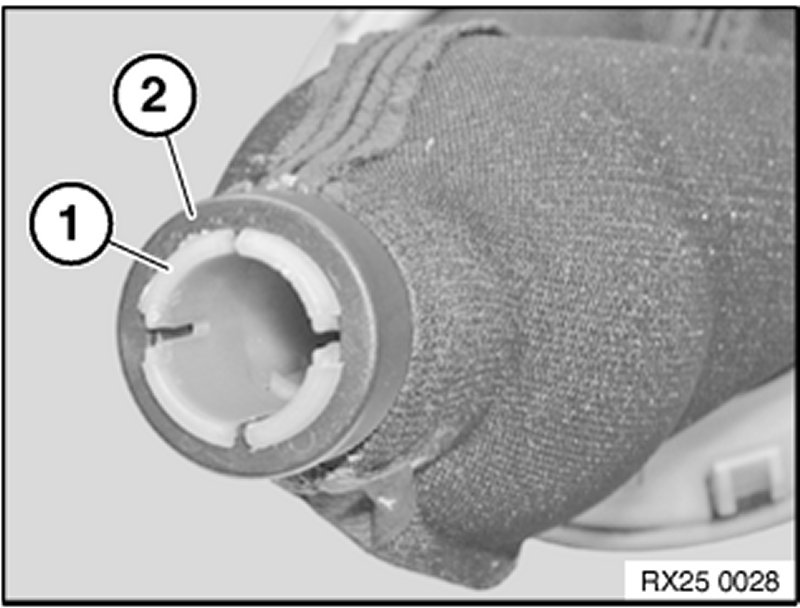

Release retaining lugs (1).
Detach gaiter (2) from gearshift lever knob.
