25 11 007 Removing and Installing Gearshift Bracket

25 11 007 Removing and Installing Gearshift Bracket






Necessary preliminary work:
- Remove exhaust system
- Remove gearshift lever knob with gaiter






Remove heat shield (1).

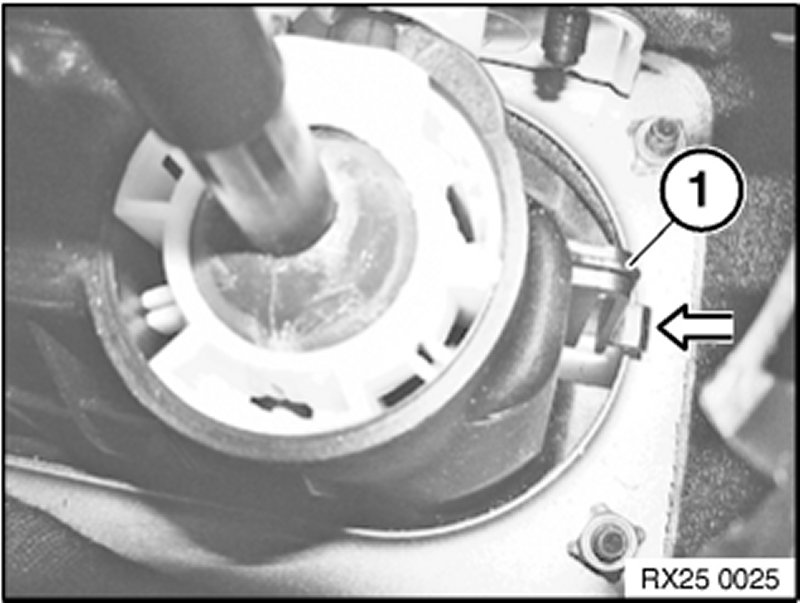

Release retaining clip (1).

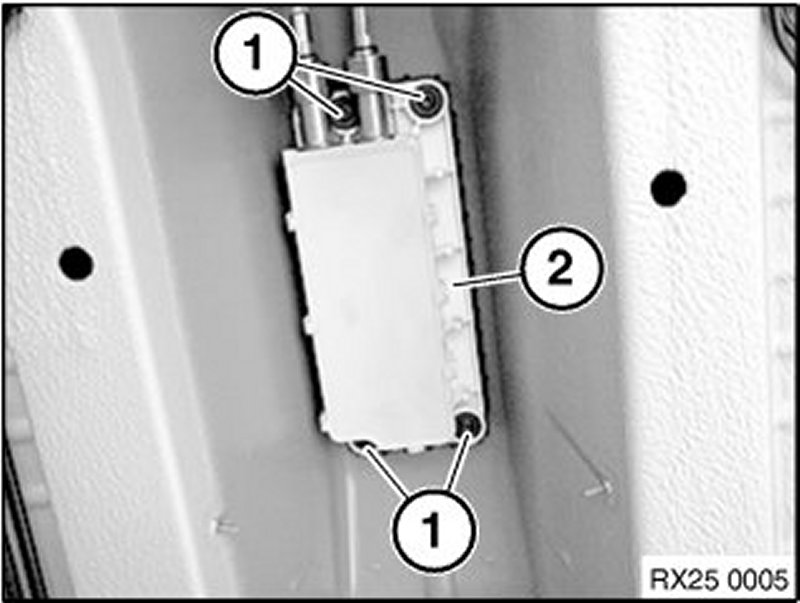

Release screws (1).
Pull off shift lever housing (2) towards rear.






Installation note:

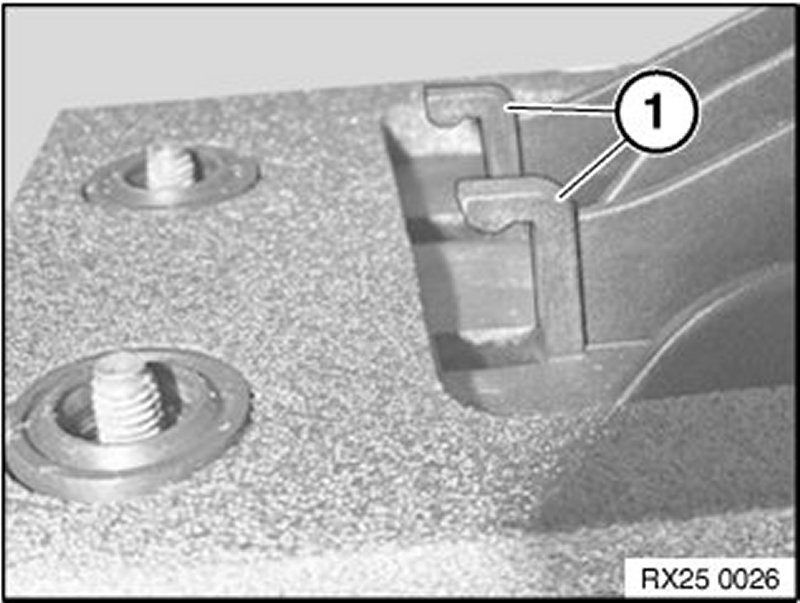

Front retaining lugs (1) of shift lever housing must first be fed into the vehicle underbody.






Important!
Do not damage the bridges of the latch mechanisms on the lid.

Lift out the latch mechanism and release shift lever cover.






Installation note:

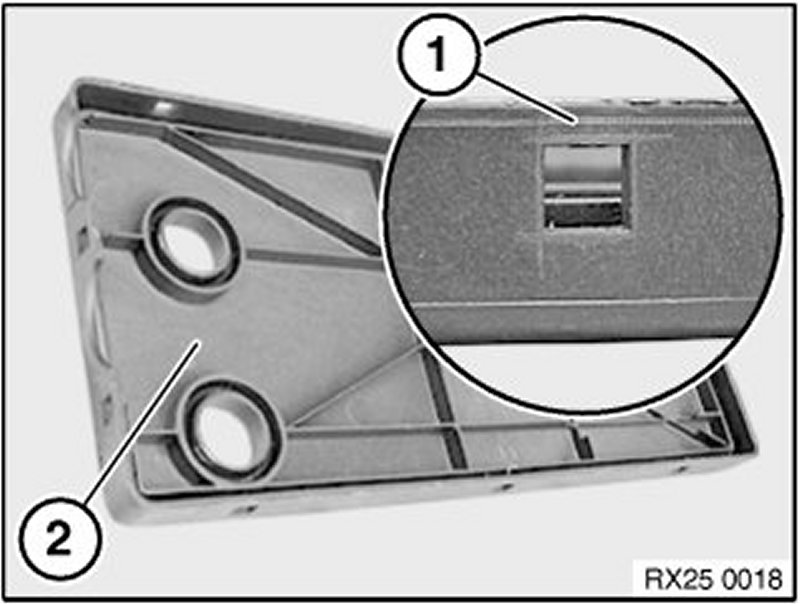

The bridges (1) of the latch mechanisms on the lid (2) must not be damaged.
Replace seals if defective.






Use suitable pliers to detach gear selector cable assemblies (1).
Remove clips (2) and pull gear selector cable assemblies out of housing.
