25 16 065 Replacing Gaiter (Selector Lever Cover) For Gearshift Bracket

25 16 065 Replacing gaiter (selector lever cover) for gearshift bracket






Necessary preliminary work:
- Remove grip






Detach trim cover (1) in upward direction.

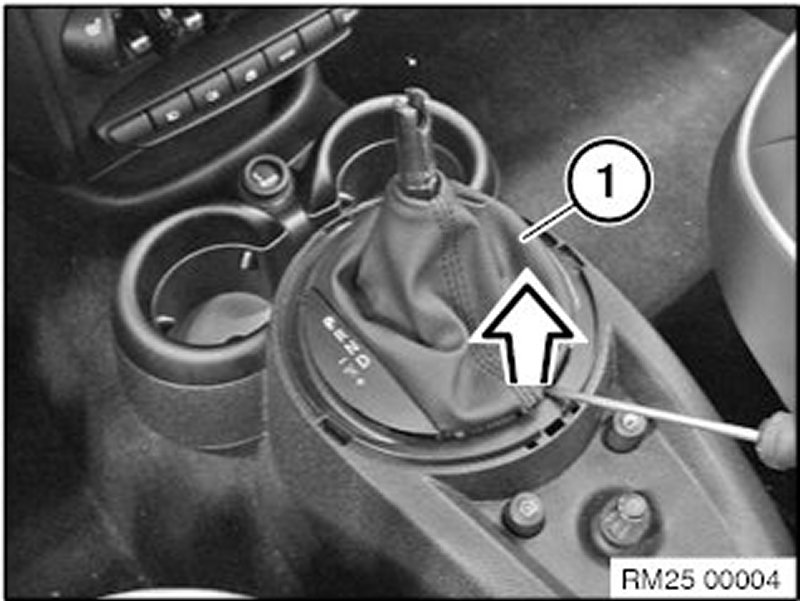

Use suitable tool to release gaiter retainers (1).
Pull off gaiter upwards.

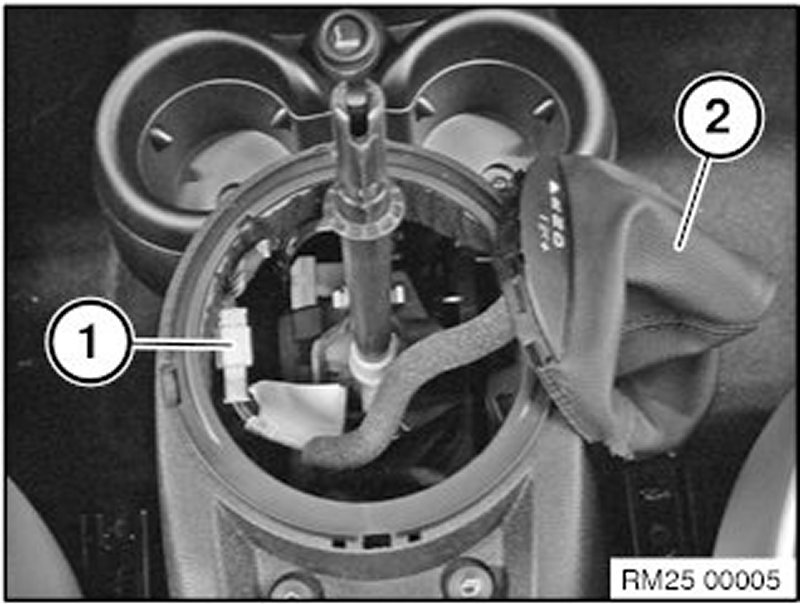

Release plug connection (1) on holder and disconnect.
Remove gaiter (2).






Release retainers and remove trim cover (1).

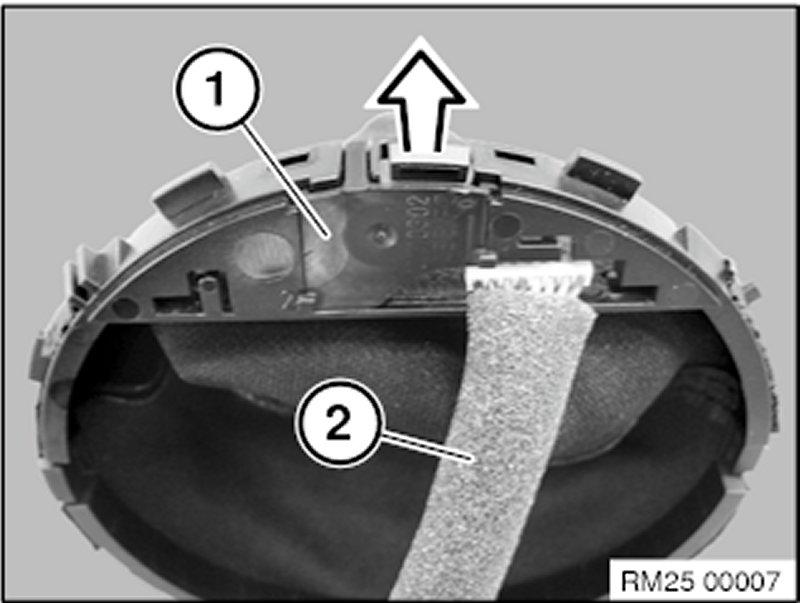

Remove cover (1) in direction of arrow and feed out wiring harness (2) with display.
