Home >> Mini >> 2011 >> Cooper Countryman (R60) L4-1.6L (N16) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Shifter A/T >> Service and Repair >> 25 16 061 Selector Lever Grip

25 16 061 Selector Lever Grip




25 16 061 Selector Lever Grip






Note:
- Do not twist knob during removal as this would cause the anti-twist lock in the knob to shear off.

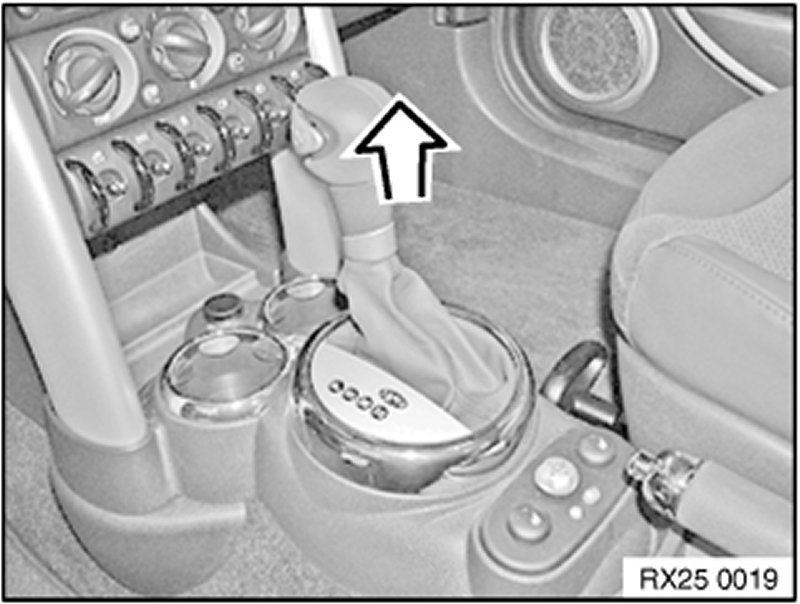

Tug firmly to remove knob.

Installation note:
- Fit knob on selector lever, align and press on until it snaps noticeably into place.

Note:
Graphic similar.
