25 16 056 Removing and Installing/Replacing Gearshift Bracket (AISIN)

25 16 056 Removing and Installing / Replacing Gearshift Bracket (AISIN)






Necessary preliminary tasks:
- Move selector lever into "P" position
- Remove selector lever grip
- Remove storage compartment
- Remove intake silencer housing
- Remove exhaust system
- Remove intake silencer housing gaiter.
- Remove heat shield
- Remove cable from holder on vehicle underbody

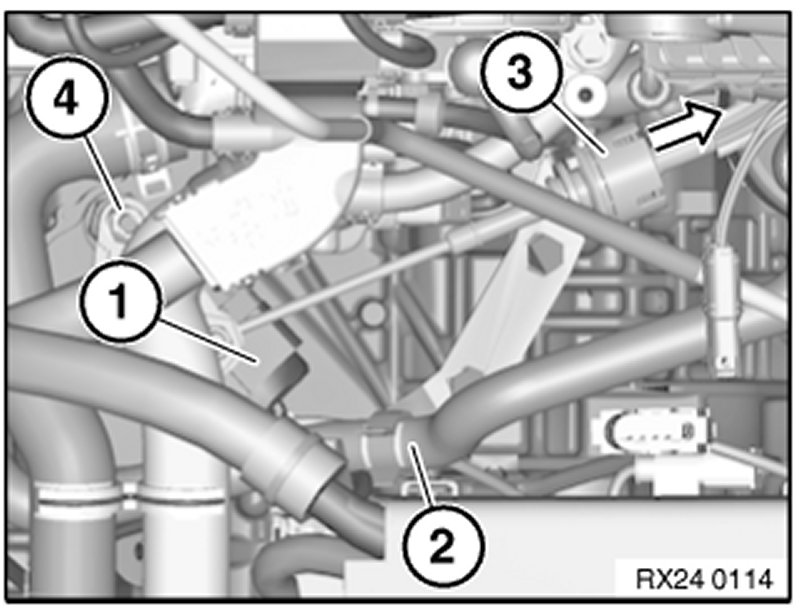

Slide retaining sleeve for cable (3) in direction of arrow.
Remove cable from holder.

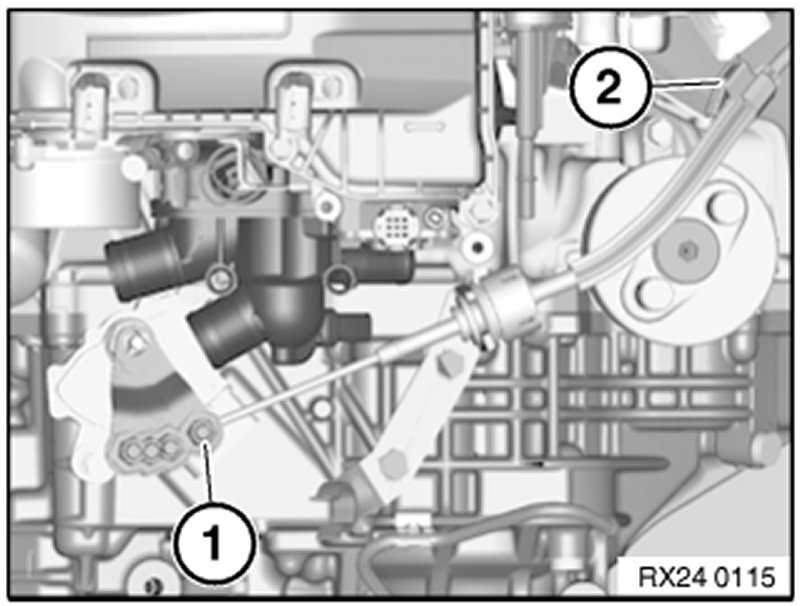

Release cable lock nut (1).
Remove cable from holder (2).
Tightening torque 24 11 8AZ.
Installation note:
Adjust selector lever.

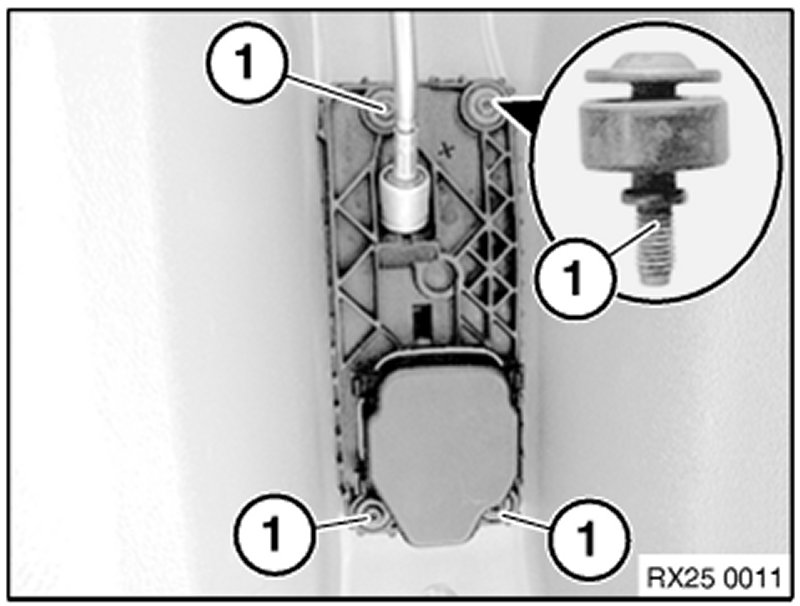

Remove mounting bolts (1) of gear shift housing.
Tightening torque 25 16 2AZ.
Note: Graphic similar.

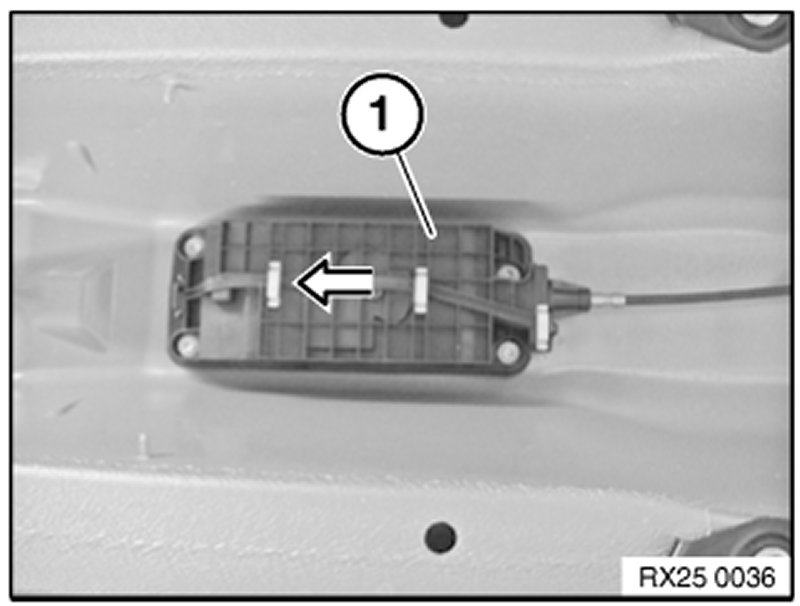

Press gearshift bracket (1) in direction of arrow.
Fold gearshift bracket downwards.

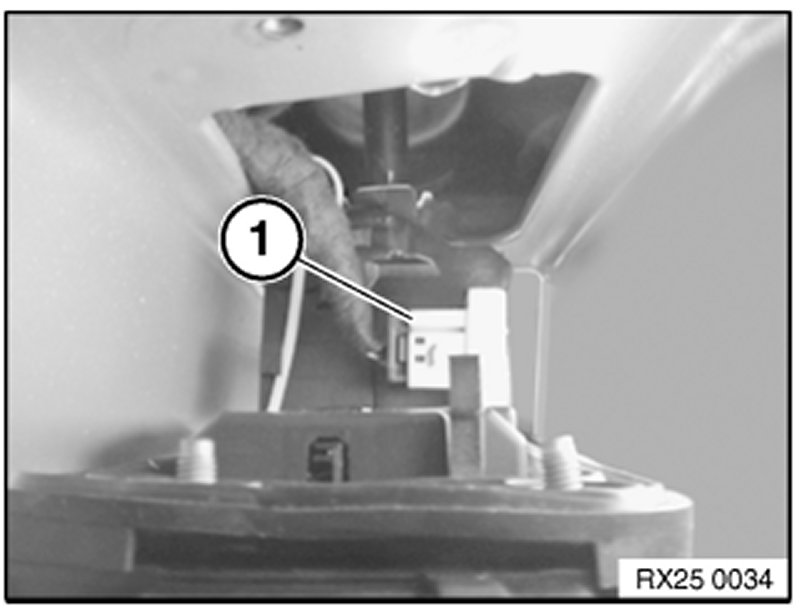

Disconnect plug connection (1) and remove gearshift bracket.






Important!
An incorrectly adjusted gearshift mechanism can result in tooth meshing noise being transmitted to the passenger compartment.

Installation note:
Adjust selector lever.






Installation note:
Move selector lever to "P" position.
Check whether parking lock is engaged by turning output shaft.
