24 00 051 Installing an Exchange Transmission (AISIN)

24 00 051 Installing an exchange transmission (AISIN)







IMPORTANT:
Transmissions are filled with fluid. Oil level does not have to be compensated.
Only in the event of discernible external damage to exchange transmission or discernible oil leakage from exchange transmission - check oil level.

After completing work:
- Use only the approved automatic transmission fluid.
- Reset adaptation values.
- Perform clutch and gear ratio adaptation.

Failure to comply with this requirement will result in serious damage to the automatic transmission.







Recycling:
Catch and dispose of escaping transmission oil.
Observe country-specific waste disposal regulations







Necessary preliminary tasks:
- Remove automatic transmission.







Convert following components from previous transmission to new transmission.

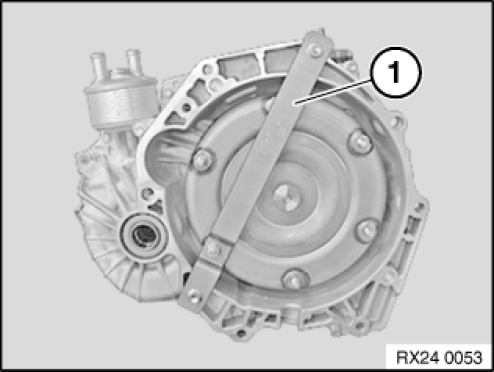

- Converter, transportation retainer (1).
- Holder with retaining clips for wiring harness
- Modify ventilation pipe
- Transportation plate
- Transmission carrier with transmission support block
Tightening torque 24 11 9AZ.
