24 21 515 Replacing Radial Shaft Seal For Drive Shaft (AISIN)

24 21 515 Replacing radial shaft seal for drive shaft (AISIN)

Special tools required:







NOTE:
Transmission removed.
Remove torque converter







Drive a hole into radial shaft seal using a centre punch.

IMPORTANT: Do not use a drill as drillings may result in transmission malfunction.

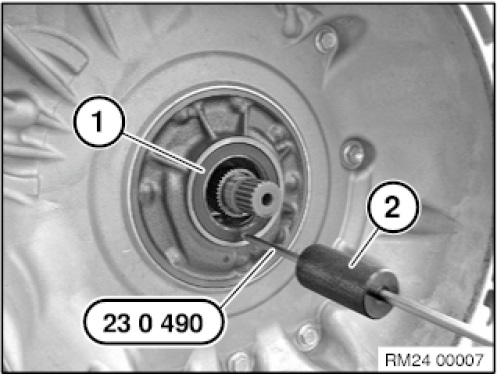

Thread special tool 23 0 490 into radial shaft seal (1).
Drive out radial shaft seal (1) with impact weight (2).







Installation note:
Clean sealing surface.
Lubricate sealing lip of shaft seal with clean transmission oil.

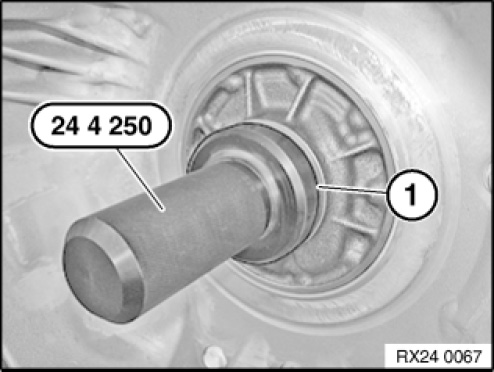

Push radial shaft seal (1) onto special tool 24 4 250 and drive it in all the way.

IMPORTANT: Do not damage shaft seal (1).
