24 12 110 Removing and Installing/Replacing Radial Shaft Seal For Gearshift Shaft (AISIN)

24 12 110 Removing and Installing/Replacing Radial Shaft Seal for Gearshift Shaft (AISIN)






Special tools required:






Necessary preliminary work:
Remove gear position switch

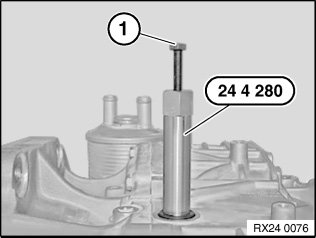

Screw special tool 24 4 280 firmly into radial shaft seal.
Pull sealing ring out of transmission housing by means of bolt (1).






Installation note:
Coat sealing lips of new radial shaft seal with clean transmission oil.

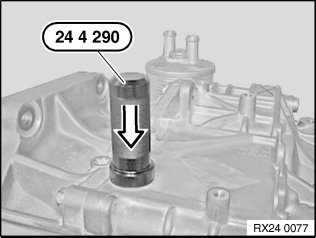

Drive in radial shaft seal with special tool 24 4 290 until it stops.
