Fluid Pan: Service and Repair

24 11 012 Removing and installing/sealing or replacing transmission oil sump (AISIN)







IMPORTANT:
- Do not let skin come in contact with transmission oil and do not inhale fuel vapours.
- Wear protective gloves.
- Ensure adequate ventilation.







IMPORTANT:
Remove transmission oil sump only after it has cooled down.
After completion of repair work, check transmission oil level.
Use only the approved automatic transmission oil in this automatic transmission.

Otherwise the automatic transmission may incur extensive damage.

NOTE:
Record the quantity of drained transmission oil.
Required replenishment quantity approx. 4.5 litres.







Recycling:
Catch and dispose of escaping automatic transmission fluid.
Observe country-specific waste disposal regulations.







Necessary preliminary tasks:
Secure engine in installation position.
Raise engine and transmission.







Remove underbody protection.

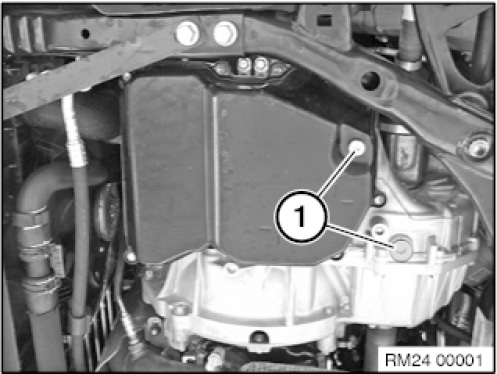

Release screws (1).
Drain off transmission fluid.

Installation note:
Tightening torque 24 11 1AZ.
Replace gaskets.

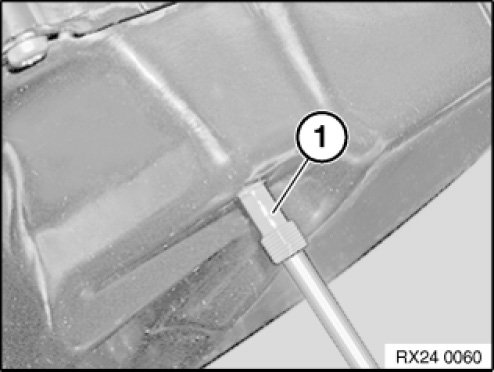

Screw sump tube (1) out of transmission oil sump and drain remaining transmission oil.

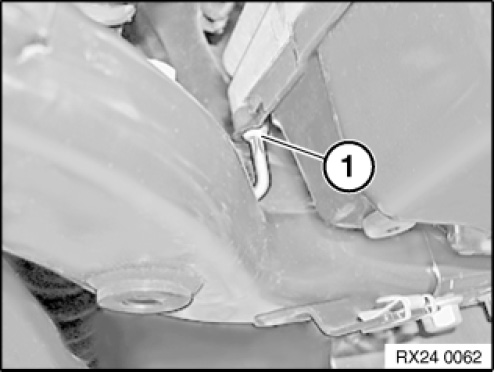

Release Torx screw (1).
Remove remaining mounting bolts from transmission oil sump and remove sump.
Remove oil sump gasket.
Clean sealing surfaces.
Tightening torque 24 11 3AZ.

Installation note:
Replace gasket.

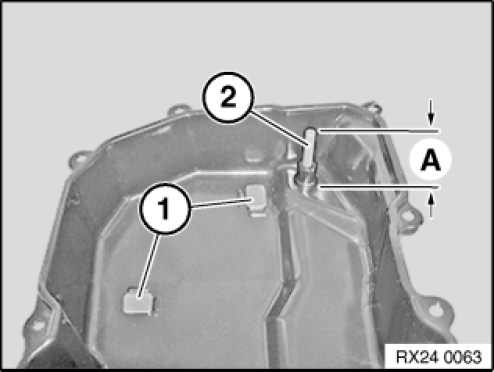

Clean sump magnets (1) and insert in new transmission oil sump.
Screw sump tube (2) into new transmission oil sump.

Measurement A:
R55,R56,R57,R60: 37, 35-38.05 mm
Tightening torque 24 11 1AZ.

IMPORTANT: Do not tighten sump tube too tightly.
