33 32 ... Replacing Left or Right Trailing Arm Bracket

33 32 ... Replacing left or right trailing arm holder





Necessary preliminary work:
^ Remove rear wheel.





Important!
When replacing trailing arm:
Replace self-tapping screw.
Before installing the trailing arm, tap a thread in the trailing arm with the new screw.

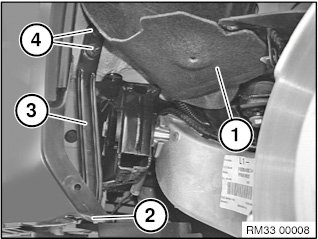

Partially release wheel arch panel (1) and fold aside.

Release expanding rivet (2) at sill.

Release screws (4) and remove strut (3).

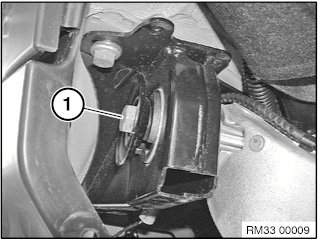

Mark position of trailing arm bracket to body to simplify subsequent adjustment of rear axle.

Support trailing arm from underneath using a workshop jack.

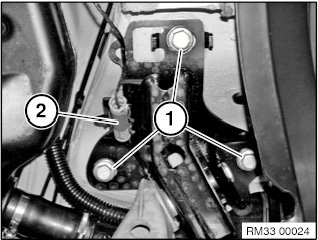

Release screws (1), disconnect connector (2) and remove trailing arm with holder.

Installation note:
Tightening torque 33 32 5AZ.





Release screw (1) and remove holder (2).

Installation note:
Tightening torque 33 32 4AZ

Tighten down screw in normal position.





After installation:

^ Perform wheel alignment.
