Removing and Installing/Replacing Reinforcement Brace

31 11 007 Removing and installing/replacing reinforcement strut







IMPORTANT:
Observe safety informations for raising the vehicle
Driving without the reinforcement bar is not permitted.

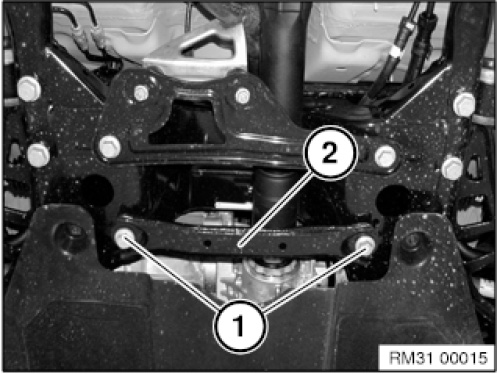

Release screws (1).
Tightening torque 31 11 6AZ

Remove reinforcement bar (2).
