33 55 021 Replacing Both Rubber Mounts For Anti-Roll Bar Mounting

33 55 021 Replacing both rubber mounts for anti-roll bar mounting





Necessary preliminary work:
^ Remove rear wheels

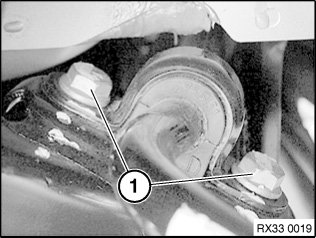

Release screws (1).

Remove retaining bracket from rubber mount and then remove rubber mount.

Installation note:
Rubber mounts must be installed dry.

Tightening torque 33 55 3AZ.
