37 14 511 Replacing Front Ride-Height Sensor

37 14 511 Replacing front ride height sensor





Important!
Observe safety instructions for raising the vehicle





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection).

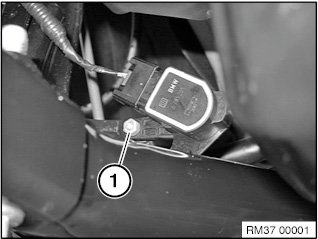

Undo nut (1) from link at ride-height sensor.

Installation note:
Replace self-locking nut.

Tightening torque 37 14 4AZ.





Move sensor lever upward.

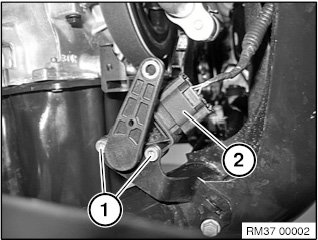

Undo screws (1), release plug connection (2) and disconnect.

Tightening torque 37 14 1AZ.





After installation:
^ Check headlight setting, correct if necessary
