61 12 200 Replacing Wiring Harness In Left or Right Front Door

61 12 200 Replacing Wiring Harness In Left Or Right Front Door







Read and comply with notes on handling wiring harnesses and cables.







Necessary preliminary work:
- Remove sound insulation at left front door







Unlock plug connections (1) and disconnect.
Unclip door wiring harness at points (2).

Installation note:
Make sure door wiring harness is correctly laid.

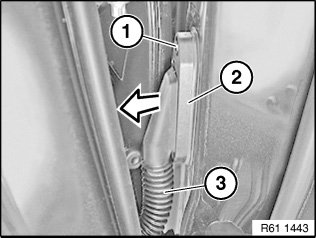

Release screw (1).
Fold door wiring harness plug on A-pillar (2) downwards slightly and remove.
Unlock plug connection behind and disconnect.
Pull rubber grommet (3) out of front door.
Feed out door wiring harness towards front to A-pillar.
