65 77 720 Removing and Installing/Replacing Left B-pillar Sensor

65 77 720 Removing And Installing/Replacing Left B-pillar Sensor







WARNING:
Comply with airbag safety regulations.
Incorrect handling can lead to airbag deployment and cause injury.







Necessary preliminary work:
- Disconnect battery earth lead
- Remove trim panel for door post

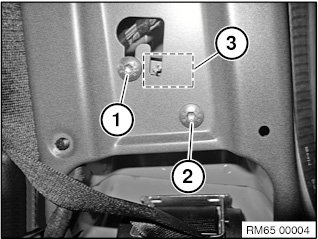

Slacken bolt (1).
Release screw (2).
Tightening torque 65 77 3AZ.
Feed out sensor (3).

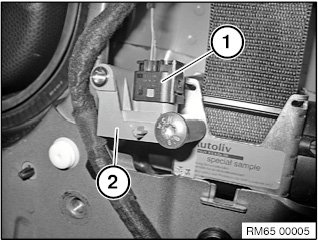

Unfasten plug connection (1) and disconnect.
Remove sensor (2).
