72 11 101 Removing and Installing/Replacing Rear Centre Seat Belt

72 11 101 Removing and installing/replacing rear centre seat belt







Necessary preliminary tasks:
- Lower headlining







Installation note:
- Microencapsulated screws must be replaced and may not be reused
- Screw connection must be completed within 20 minutes (start of hardening)
- Microencapsulated screws must not be retightened
- Clean thread of nut beforehand in event of repeated use

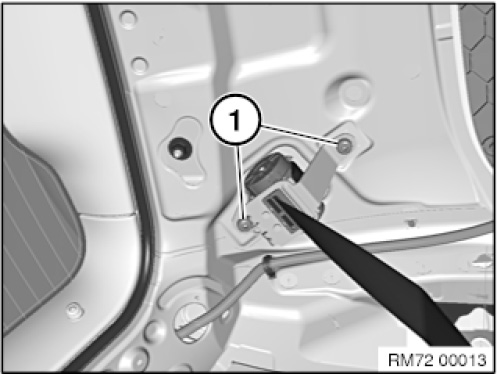

Release screws (1).
Tightening torque 72 11 05AZ.

Installation note:
Replace screw.

Remove automatic reel (2).

Installation note:
Retractor mechanism (2) is coded against incorrect installation.

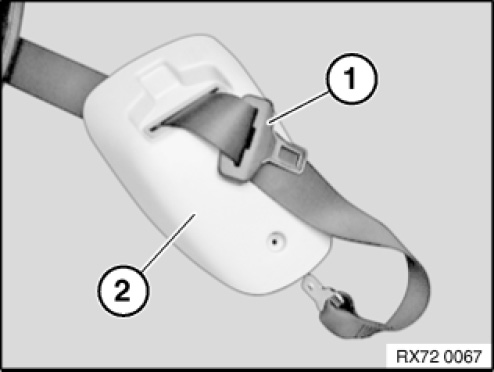

Feed buckle tongue (1) and seat belt strap out of cover (2) for the automatic reel.
