72 11 097 Removing and Installing/Replacing Rear Left or Right Lower Strap

72 11 097 Removing And Installing/Replacing Rear Left Or Right Lower Strap







Necessary preliminary work:
- Remove rear seat







Installation note:
- Microencapsulated screws (Loctite) must be replaced and may not be reused
- Screw connection must be completed within 20 minutes (start of curing)
- Microencapsulated screws must not be retightened
- Clean thread of nut beforehand in event of repeated use

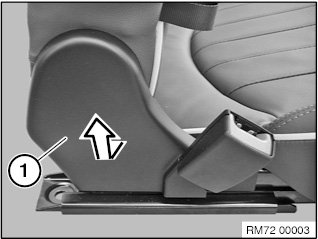

Remove cover (1) in direction of arrow.







Installation note:

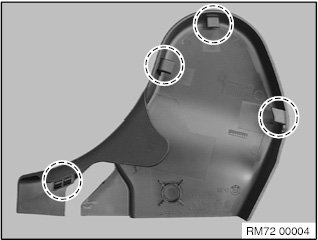

Retaining lugs on cover must not be damaged.
Replace cover if necessary.

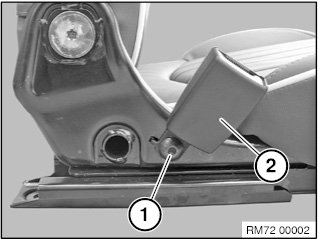

Release screw (1).
Tightening torque 72 11 08AZ.
Remove lower strap fitting (2).

Installation note:
Replace screw (1).
Lower strap is encoded against incorrect assembly (2).
