72 11 092 Removing and Installing/Replacing Rear Left or Right Seat Belts

72 11 092 Removing And Installing/Replacing Rear Left Or Right Seat Belt







Necessary preliminary work:
- Remove left or right wheel arch panel







Installation note:
- Microencapsulated screws (Loctite) must be replaced and may not be reused
- Screw connection must be completed within 20 minutes (start of hardening)
- Microencapsulated screws must not be retightened
- Clean thread of nut beforehand in event of repeated use

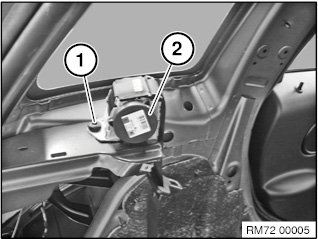

Release screw (1).
Tightening torque 72 11 05AZ.
Remove automatic reel (2).

Installation note:
Automatic reel (2) is encoded against incorrect assembly.
Replace screw (1) and insert with Loctite.
